3" Resonator delete


Old 12-04-2018, 10:13 AM
  #1
Member
Thread Starter

Fly50's Avatar

Join Date: Nov 2018
Location: NJ
Posts: 30
Thanked 6 Times in 3 Posts
Default 3" Resonator delete


Is there a 3" resonator delete available for the diy exhaust job? Stainless only as i'm in the salt belt
From what I measured the Y-pipe is 3" then drops to 2.5" at the flange through the resonator to the muffler.
If not has anyone had any luck with any 3" flanges that bolt up to the stock Y-pipe?
Found this but can't find the specs on the bolt spacing, most seem to be 4.5", Stock looks to be between 5-1/4 - 5-1/2
Also not sure if the ball will seat with the stock Y-pipe

Kooks 7106S-Male






Jegs 31065 3" ID Spherical
Fly50 is offline
Old 12-05-2018, 09:39 PM
  #2
TOTM Sept. '18
iTrader: (1)

OCMike's Avatar

Join Date: Nov 2017
Location: Osceola, Indiana
Posts: 2,873
Thanked 1,286 Times in 880 Posts
Default

The only one made from stainless I could find that I liked was for a 1st generation Raptor with a 6.2L. Not a very cheap option, but a very well built part.

https://www.lethalperformance.com/co...pe-144-wb.html

For my RC I had to cut it down for length. The taper on collar wasn't just right so grind it down by mounting in a pipe expander chucking up to a drill press.


Last edited by OCMike; 12-05-2018 at 09:53 PM.
OCMike is offline
Old 12-06-2018, 09:28 AM
  #3
Member
Thread Starter

Fly50's Avatar

Join Date: Nov 2018
Location: NJ
Posts: 30
Thanked 6 Times in 3 Posts
Default

Thanks OCmike
I have 157" wheelbase so I know I'd have to lengthen it.
Regarding the flange needing some trimming, I guess that's why the Roush exhaust has you discard their flange and reuse the stock Raptor.
Any idea of the overall length of that part?
For the record I'm 64" from flange to muffler.

Last edited by Fly50; 12-07-2018 at 06:42 PM. Reason: spelling
Fly50 is offline
Old 12-06-2018, 09:33 AM
  #4
TOTM Sept. '18
iTrader: (1)

OCMike's Avatar

Join Date: Nov 2017
Location: Osceola, Indiana
Posts: 2,873
Thanked 1,286 Times in 880 Posts
Default

Originally Posted by Fly50 View Post
Thanks OCmike
I have 157" wheelbase so I know I'd have to lengthen it.
Regarding the flange needing some trimming, I guess that's why the Rousch exhaust has you discard their flange and reuse the stock Raptor.
Any idea of the overall length of that part?
For the record I'm 64" from flange to muffler.
I had to cut it down for length, and I still have what I cut off. I have to change oil this weekend so I'll see what's on the truck and what I have left so can estimate the original length.
OCMike is offline
Old 12-19-2018, 06:45 PM
  #5
Member
Thread Starter

Fly50's Avatar

Join Date: Nov 2018
Location: NJ
Posts: 30
Thanked 6 Times in 3 Posts
Default

Found another that "looks" like it should fit.
Should get me to the muffler with a 60" section of 3" pipe


​​​​​​
Fly50 is offline
Old 01-01-2019, 02:19 PM
  #6
Member
Thread Starter

Fly50's Avatar

Join Date: Nov 2018
Location: NJ
Posts: 30
Thanked 6 Times in 3 Posts
Default

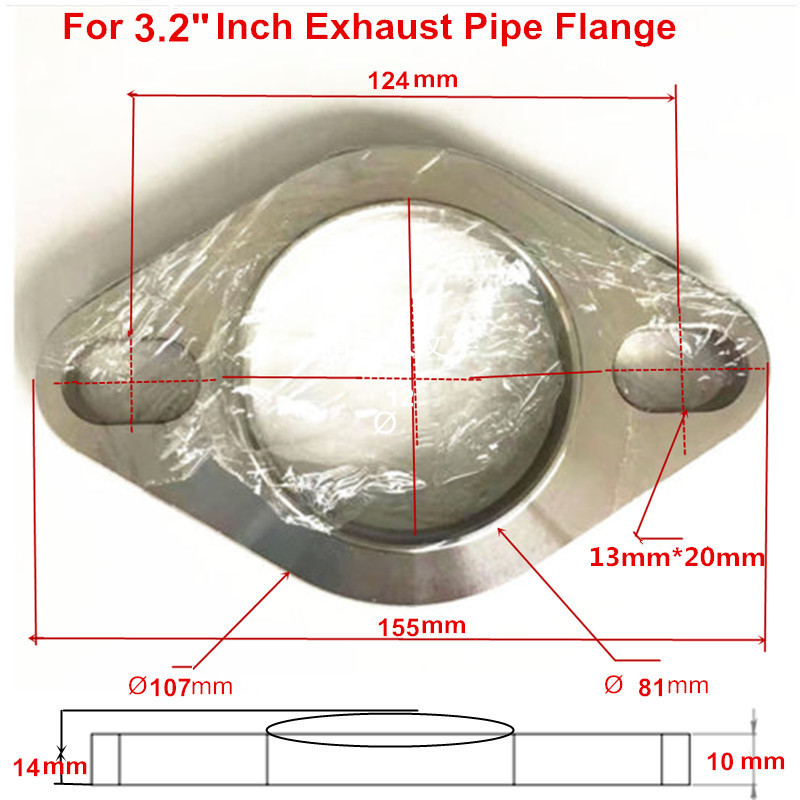

OK, so I believe i have found the closest match to the OE flange it's 304SS
The 124mm centers are oblong and look to max out at 131mm (5.15") with a 1/2" bolt
Now to find a 3" stainless pipe with a ball end.

Fly50 is offline
Old 01-01-2019, 02:53 PM
  #7
TOTM Sept. '18
iTrader: (1)

OCMike's Avatar

Join Date: Nov 2017
Location: Osceola, Indiana
Posts: 2,873
Thanked 1,286 Times in 880 Posts
Default

Originally Posted by Fly50 View Post
OK, so I believe i have found the closest match to the OE flange it's 304SS
The 124mm centers are oblong and look to max out at 131mm (5.15") with a 1/2" bolt
Now to find a 3" stainless pipe with a ball end.


Yep...That should work. If I recall when I measured mine it was a tad under 5", which is around 124mm.

Mike
OCMike is offline
The Following User Says Thank You to OCMike For This Useful Post:
Fly50 (01-01-2019)
Old 02-08-2019, 02:28 PM
  #8
Member
Thread Starter

Fly50's Avatar

Join Date: Nov 2018
Location: NJ
Posts: 30
Thanked 6 Times in 3 Posts
Default



Took a few weeks to get the part, but it's in hand now.
Still haven't found anyone locally to put the ball flare in the 3" pipe.
Fly50 is offline
Old 02-13-2019, 08:07 AM
  #9
Senior Member
iTrader: (2)

Join Date: Jan 2011
Posts: 701
Thanked 72 Times in 53 Posts
Default

I bought the piece I think you need several years ago. Thing is, I can't remember where I bought it from. I think it was Columbia river mandrel bending or mandrel bends. I sent them the picture and specs of what I needed and they had one. This one was for 3" pipe instead of the standard 2.5" pipe.

02reaper is offline
Old 02-13-2019, 10:23 AM
  #10
Senior Member
iTrader: (2)

Join Date: Jan 2011
Posts: 701
Thanked 72 Times in 53 Posts
Default

I believe I found some here. Make sure the bolt spacing is correct before you order though.

https://www.alibaba.com/product-deta...30cc22a2kM5Bqp
02reaper is offline
