2016 F-150 raptor conversion


Old 12-10-2017, 06:02 PM
  #1
Senior Member
Thread Starter

Join Date: Jun 2009
Posts: 131
Liked 10 Times in 9 Posts
Default 2016 F-150 raptor conversion

My Truck is a 2016 2.7 xlt sport 4x4 302a with glass roof, almost pulled the trigger on a 2018 raptor. When i stepped back and looked at what i was really wanting before i cut a check for $35000 and traded my truck in, i realized i really wanted the suspension and body work. Call me crazy i really didn't care much about the motor. Soo i decided to save $30000, and convert mine.

Stage 1
- Factory Gen 2 UCA, LCA, brakelines, and vacuum lines
- Gen 1 Fox Coilovers and rear shock
- Gen 1 axles
- Factory Gen 2 fenders, bedsides, grill, and bumpers
-17” Rrw wheels on Falken Wildpeak MT 35’s

Stage 2
- Factory Gen 2 hood
- Led Headlights and tailights
- Aftermarket Lighting

Last edited by flowmasters40; 01-04-2018 at 08:30 AM.
flowmasters40 is offline
Old 12-10-2017, 06:15 PM
  #2
Senior Member

Join Date: Mar 2017
Location: North Idaho
Posts: 430
Likes: 0
Liked 94 Times in 70 Posts
Default

Originally Posted by flowmasters40 View Post
So i order all the factory raptor front end suspension parts. Does anyone know the track width regular/raptor?

Going with McNeil racing front and rear fiberglass, their shipping is 700$ cheaper than fiberworx.

Will run 17Ē Rrw wheels on 35ís
I remember reading that either the upper or lower control arm has a different attach point, whats your plan for that?
MagneticLariat is offline
Old 12-10-2017, 06:29 PM
  #3
Senior Member
Thread Starter

Join Date: Jun 2009
Posts: 131
Liked 10 Times in 9 Posts
Default

Originally Posted by MagneticLariat View Post
I remember reading that either the upper or lower control arm has a different attach point, whats your plan for that?
Well **** i sure hope not?? I ordered a little over 2k$ worth of front end parts
flowmasters40 is offline
Old 12-10-2017, 07:17 PM
  #4
Senior Member
Thread Starter

Join Date: Jun 2009
Posts: 131
Liked 10 Times in 9 Posts
Default

Originally Posted by MagneticLariat View Post
I remember reading that either the upper or lower control arm has a different attach point, whats your plan for that?
I canít imagine for wold change that much between the raptor and standard F-150, where did you hear that?
flowmasters40 is offline
Old 12-10-2017, 08:07 PM
  #5
Senior Member
iTrader: (2)

baxzilla's Avatar

Join Date: May 2012
Posts: 1,014
Liked 169 Times in 117 Posts
Default

I know the rear shock has a different frame mount so you will need to go aftermarket on rear shocks for sure. I believe each side of the raptor (track width wise) is 3" wider. So your total track width should be 6" wider
baxzilla is offline
Old 12-10-2017, 08:13 PM
  #6
Senior Member

Trailbreak74's Avatar

Join Date: Mar 2015
Posts: 587
Liked 128 Times in 87 Posts
Default

How do you plan on widening the rear track?
Trailbreak74 is offline
Old 12-10-2017, 08:23 PM
  #7
Senior Member
Thread Starter

Join Date: Jun 2009
Posts: 131
Liked 10 Times in 9 Posts
Default

Originally Posted by Trailbreak74 View Post
How do you plan on widening the rear track?
I have a drivetrain place by my house. They are going to widen my factory axle
flowmasters40 is offline
Old 12-10-2017, 11:27 PM
  #8
Member

Join Date: May 2016
Posts: 81
Liked 27 Times in 10 Posts
Default

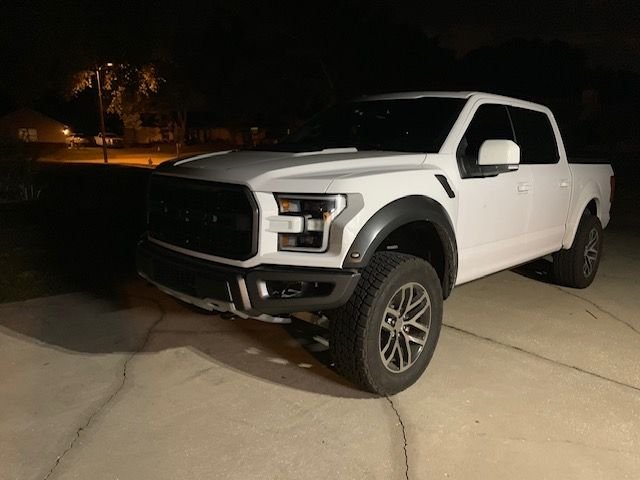

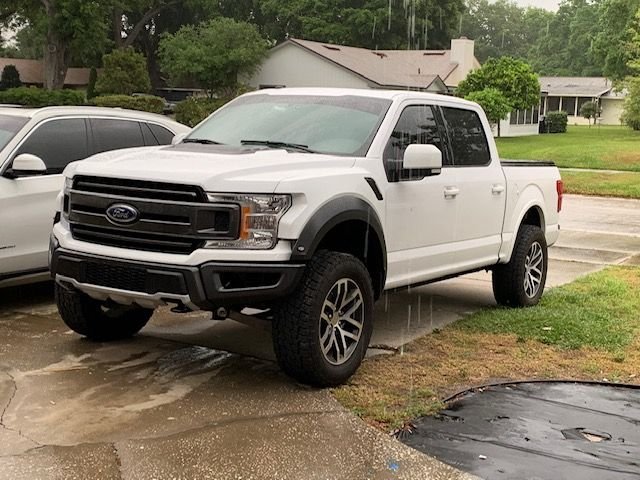

Here is my coyote #plaptor. I did Rogue Racing suspension, Raptor diffs, and King shocks plus much more. Let me know if I can help.




Last edited by dnewman; 12-10-2017 at 11:37 PM.
dnewman is offline
The following 5 users liked this post by dnewman:
janr (01-21-2018), kenv47 (03-17-2018), Ohsix (01-17-2019), WarSurfer (01-03-2018), white_dc (12-11-2017)
Old 12-11-2017, 12:11 AM
  #9
Fake Ballin for da Gram
iTrader: (12)

Join Date: Jun 2011
Location: NE Florida
Posts: 2,964
Liked 397 Times in 341 Posts
Default

How was the quality of the fiberworx glass?
white_dc is offline
Old 12-11-2017, 09:34 AM
  #10
Member

Join Date: May 2016
Posts: 81
Liked 27 Times in 10 Posts
Default

Originally Posted by white_dc View Post
How was the quality of the fiberworx glass?
I think any manufacturer's first set of glass can be problematic, this is their 4.5"glass and it is several production runs through and was about as good as you could expect. I ran their Raptor OEM glass the first build on this truck, a set from the first production run and it was rough. I have a fair amount of time into the fenders getting them to fit fixing mold issues etc and it fits pretty good. If I had painted it, it would have been a fair amount of blocking to get straight.
dnewman is offline
The following users liked this post: dnewman
white_dc (12-21-2017)
