Default Torx Driver Size On Bracket Mounted Door Mirrors

Can anyone tell me the T# for the Torx bolts that when tightened hold the mirrors firmly on my 1990 F150 extended cab? The driver set that I have doesn't include one large enough. I'd like to know if it's a T20, T40 or whatever before I try to get one that will.

Thanks
rh
rabbithutch is offline
Old 11-04-2018, 10:26 PM
  #2
Bronco Guru

Steve83's Avatar

Join Date: Jan 2018
Location: Memphis, TN, Earth, Milky Way
Posts: 2,789
Thanked 333 Times in 305 Posts
Default

Are you saying you have a Torx driver set that only has T10 & T15? It's either T25 or T30, which are included in most common Torx sets. If you're buying new ones anyway, I recommend getting Tamper Torx drivers &/or bits, since they're more-versatile. For that truck, you could also use a T50 for the seat belts & door strikes. If it's a V8, the bolt under the center of the intake plenum is T40. If it's a manual-shift 4WD, the shifter bolts might be T60, but they also have hexes (I forget what size), so you don't really need that size (it's rare & expensive).
Steve83 is offline
The Following User Says Thank You to Steve83 For This Useful Post:
rabbithutch (11-05-2018)
Old 11-05-2018, 12:36 PM
  #3
Old Timer Junior Member
Thread Starter

Join Date: Jun 2014
Location: Texas
Posts: 34
Thanked 0 Times in 0 Posts
Default


Thanks, Steve! I think I'll take your advice and get at set Torx drivers.

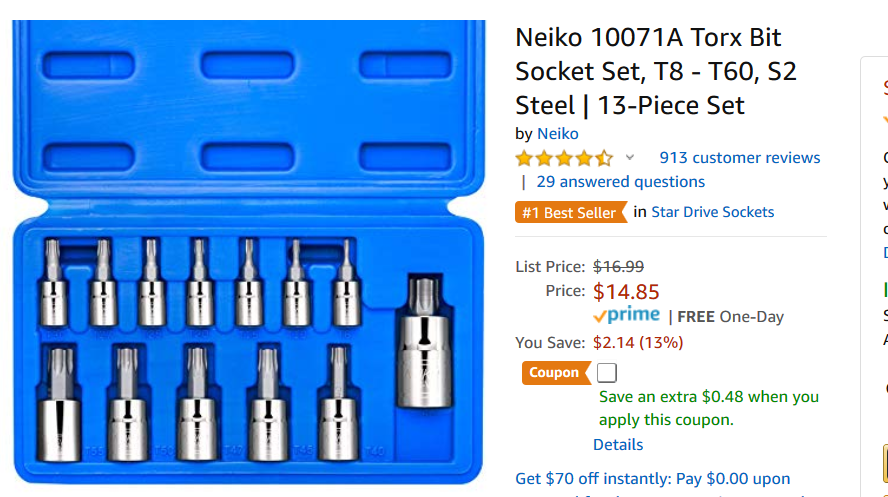

I found this set on Amazon. I was surprised that these sets all seem to be 1/4" drive instead of 3/8". I did see a set of long shafted drivers in 3/8" but they might not fit in some spaces. The ones I saw were considerably more expensive, but I think thise will meet my needs just fine.

Last edited by rabbithutch; 11-05-2018 at 12:52 PM.
rabbithutch is offline
Old 11-06-2018, 12:21 AM
  #4
Bronco Guru

Steve83's Avatar

Join Date: Jan 2018
Location: Memphis, TN, Earth, Milky Way
Posts: 2,789
Thanked 333 Times in 305 Posts
Default

I'm not a fan of Neiko, but those don't look too bad. I can see the top row is 1/4" drive; the bottom is 3/8"; and the T60 on the Right might be 1/2".

I noticed these in Tractor Supply today:


(phone app link)


I have a few sets on the Right, but I hardly use them other than the TamperTorx & Phillips.
Steve83 is offline
Old 11-08-2018, 06:27 PM
  #5
Old Timer Junior Member
Thread Starter

Join Date: Jun 2014
Location: Texas
Posts: 34
Thanked 0 Times in 0 Posts
Default

Turns out the bolt was a T30.
rabbithutch is offline
