I am not sure what this cylinder one is called
Hi all,

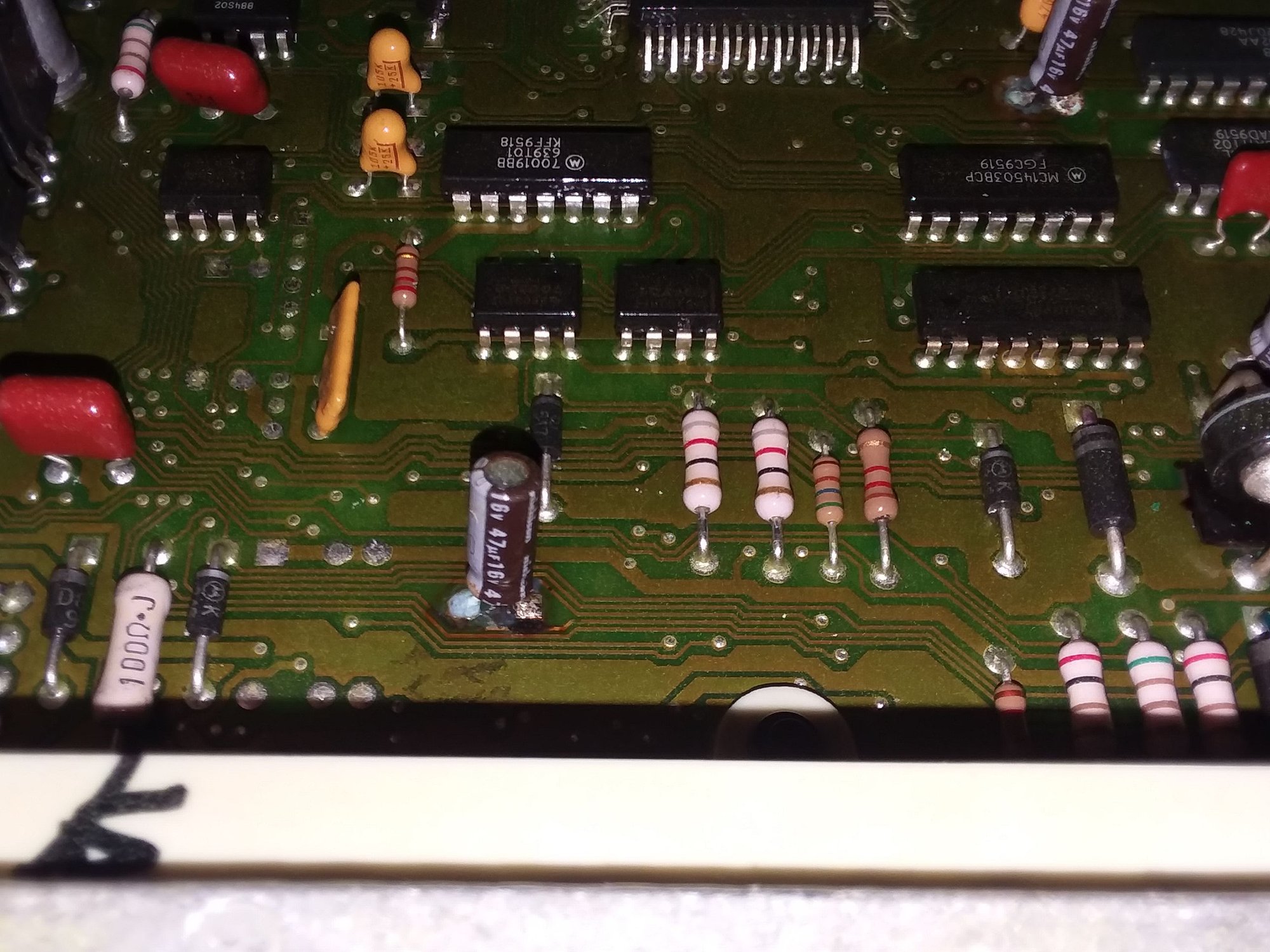

Its been a while since i posted but i think i finally found out the random misfire that has been going on with my truck for years. After running all the test (TPS, air temp sensor etc.) i took out the PCM and found these three capacitors that seem to be friend. I was wondering if anyone has ever replaced these before and what exactly they do (i cant seem to find a diagram for them). Also if anyone could tell me what kind of resistor (size) that last picture is along with that black cylinder looking capacitor (i think its a capacitor) that would be great.



This PCM is out of a 1995 F150 5.8L, E40D 2wd
351 is offline
Reply With Quote
Old 07-06-2018, 02:39 PM
  #2
Senior Member

Join Date: Oct 2016
Location: Ohio
Posts: 259
Thanks: 0
Thanked 37 Times in 31 Posts
Default

That black component looks like a diode.I can't tell exactly all the colors on that resistor from the pic. I wouldn't waste time trying to fix that PCM. Save it for a core and get a REMAN from a good parts source. Myself, I would get one from Rock Auto.

Last edited by raski; 07-06-2018 at 02:44 PM.
raski is offline
Reply With Quote
Old 07-07-2018, 02:42 PM
  #3
351
Junior Member
Thread Starter

Join Date: Oct 2014
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by raski View Post
That black component looks like a diode.I can't tell exactly all the colors on that resistor from the pic. I wouldn't waste time trying to fix that PCM. Save it for a core and get a REMAN from a good parts source. Myself, I would get one from Rock Auto.
Ya thats probably what im going to end up doing
351 is offline
Reply With Quote
Old 07-07-2018, 06:16 PM
  #4
Bronco Guru

Steve83's Avatar

Join Date: Jan 2018
Location: Memphis, TN, Earth, Milky Way
Posts: 2,349
Thanked 283 Times in 263 Posts
Default

The small vertical ones are electrolytic capacitors. They're available cheap, and are easy to replace, if you have a steady hand & understand soldering. Read this thread:
https://www.fordf150.net/forums/view...p?f=21&t=97221

The last one is a high-current power diode. That might take a little more effort to find, and it'll take a MUCH-bigger soldering iron to R&R.
Steve83 is offline
Reply With Quote
Old 07-11-2018, 06:54 PM
  #5
351
Junior Member
Thread Starter

Join Date: Oct 2014
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by Steve83 View Post
The small vertical ones are electrolytic capacitors. They're available cheap, and are easy to replace, if you have a steady hand & understand soldering. Read this thread:
https://www.fordf150.net/forums/view...p?f=21&t=97221

The last one is a high-current power diode. That might take a little more effort to find, and it'll take a MUCH-bigger soldering iron to R&R.
Thanks, you dont happen to know what those capacitors control do you? That diode is a bugger to find seems to be old design.
351 is offline
Reply With Quote
Old 07-11-2018, 07:43 PM
  #6
Bronco Guru

Steve83's Avatar

Join Date: Jan 2018
Location: Memphis, TN, Earth, Milky Way
Posts: 2,349
Thanked 283 Times in 263 Posts
Default

They control capacitation. They don't directly control any one thing - they're just parts of their circuitry.
Steve83 is offline
