Feb 17, 2020 | 12:45 PM

#11

Rolando Gomez

Thread Starter

Member

Joined: Dec 2019

Posts: 46

Likes: 0

i dont see the plug just plug of shutter n plug i post here? someone have pic of ambient location
thanks a lot Guys

Feb 17, 2020 | 12:49 PM

#12

djfllmn

Administrator

iTrader: (1)

Joined: Jun 2012

Posts: 23,880

Likes: 5,953

From: Amish Country

Quote:

Originally Posted by Rolando Gomez

i dont see the plug just plug of shutter n plug i post here? someone have pic of ambient location
thanks a lot Guys

behind the grille/ front bumper

Feb 19, 2020 | 09:51 AM

#13

Rolando Gomez

Thread Starter

Member

Joined: Dec 2019

Posts: 46

Likes: 0

Quote:

Originally Posted by djfllmn

behind the grille/ front bumper

will take picture of my front end i only see shutter n big plug with 4 wires

Feb 19, 2020 | 09:54 AM

#14

djfllmn

Administrator

iTrader: (1)

Joined: Jun 2012

Posts: 23,880

Likes: 5,953

From: Amish Country

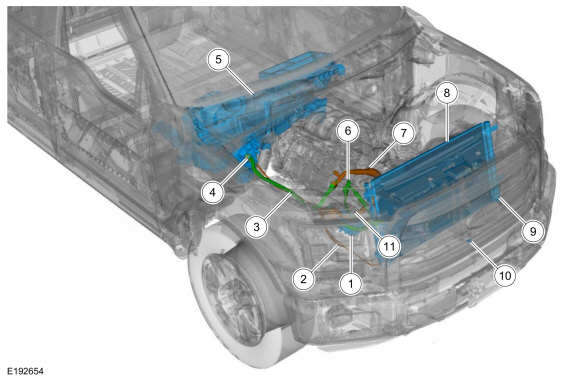

from fords WSM, the air temp sensor is number 10

Feb 19, 2020 | 04:43 PM

#15

msgtord

Senior Member

Joined: Oct 2010

Posts: 2,157

Likes: 518

From: Southwest

Quote:

Originally Posted by Rolando Gomez

i dont see the plug just plug of shutter n plug i post here? someone have pic of ambient location
thanks a lot Guys

pics here:

https://www.ford-trucks.com/forums/1...150-5-0-a.html

Feb 29, 2020 | 10:54 AM

#16

Rolando Gomez

Thread Starter

Member

Joined: Dec 2019

Posts: 46

Likes: 0

thanks i need buy conector wpt1306 ?
do you have pinout ?

Quote:

Originally Posted by msgtord

pics here:

https://www.ford-trucks.com/forums/1...150-5-0-a.html
