1996 Ford F150 - 165k - rebuild front suspension >

1996 Ford F150 - 165k - rebuild front suspension

Topic Sponsor
1987 - 1996 F150 Still running strong! Talk about your 8th and 9th generation Ford F150 trucks.

1996 Ford F150 - 165k - rebuild front suspension

Reply




Old 02-04-2018, 05:16 PM
  #1
Junior Member
Thread Starter

Join Date: Feb 2018
Location: Central Washington
Posts: 8
Thanked 0 Times in 0 Posts
Default 1996 Ford F150 - 165k - rebuild front suspension

Hey there, I need to replace my lower ball joint on the passenger front side. The truck is probably due for some maintenance, what else should I replace while doing the ball joints? I have new pads and rotors waiting to go in, I'm thinking wheel bearings, tie rod ends, and new shocks. Any input would be appreciated, I recently graduated college and have a little more disposable income so I would like to get my truck back into good shape.

Any specific brands I should try and buy?
Thanks,
James
Rallyfast is offline
Reply With Quote
Old 02-04-2018, 05:50 PM
  #2
Senior Member

BLDTruth's Avatar

Join Date: Jun 2015
Location: Oregon
Posts: 2,118
Thanked 314 Times in 286 Posts
Default

If you are going in that deep to replace the ball joints, then go big - Ball joints, wheel bearings and seals, brake pads, rotors, calipers, tie rods - if its a 4WD then you should also do spindle bearings and seals and front axle U joints. If the front differential needs servicing in any way, now is the time to pull it while everything is out. Also a good time to replace or service 4WD hubs.

It would also be a good idea to look at/replace the radius arm bushings, axle pivot bushings, and sway bar links/bushings. New coil springs would be nice, as well as new shocks. When you are done, plan on getting a full alignment that will almost certainly require the installation of new camber bushings.

Ball joints, Tie rods, Springs - Moog
Bearings - Timken
Seals - National or Timken
Universal joints - Dana/Spicer original or MOOG
Brakes - Wagner, Raybestos, or Motorcraft
Shocks - This will get the biggest debate - I like KYB Excel G for stock replacements.

Are you doing the work yourself? I highly, highly, HIGHLY recommend rockauto.com for all the parts. Amazon is good too for the heavy stuff, especially if you have a prime membership

Welcome to the forum! We encourage newbies to post pictures of your truck.
BLDTruth is online now
Reply With Quote
Old 02-04-2018, 06:21 PM
  #3
Junior Member
Thread Starter

Join Date: Feb 2018
Location: Central Washington
Posts: 8
Thanked 0 Times in 0 Posts
Default

Originally Posted by BLDTruth View Post

Are you doing the work yourself? I highly, highly, HIGHLY recommend rockauto.com for all the parts. Amazon is good too for the heavy stuff, especially if you have a prime membership

Welcome to the forum! We encourage newbies to post pictures of your truck.
First of all, thank you so much for the info!
I do intend on doing the work myself, especially if I'm going to replace all these components at once. I was considering having a local shop do the work but I didn't realize the ball joints were that intensive.

I could just buy all the parts and have my local shop do the install, I have a manual for all the torque specs but it would be nice to just have them do it as well, been working a lot lately and time is scarce at the moment. I'll get a better pic of the truck up shortly. This is all i have for now.
Thanks,
James
Rallyfast is offline
Reply With Quote
Old 02-04-2018, 06:34 PM
  #4
Junior Member
Thread Starter

Join Date: Feb 2018
Location: Central Washington
Posts: 8
Thanked 0 Times in 0 Posts
Default

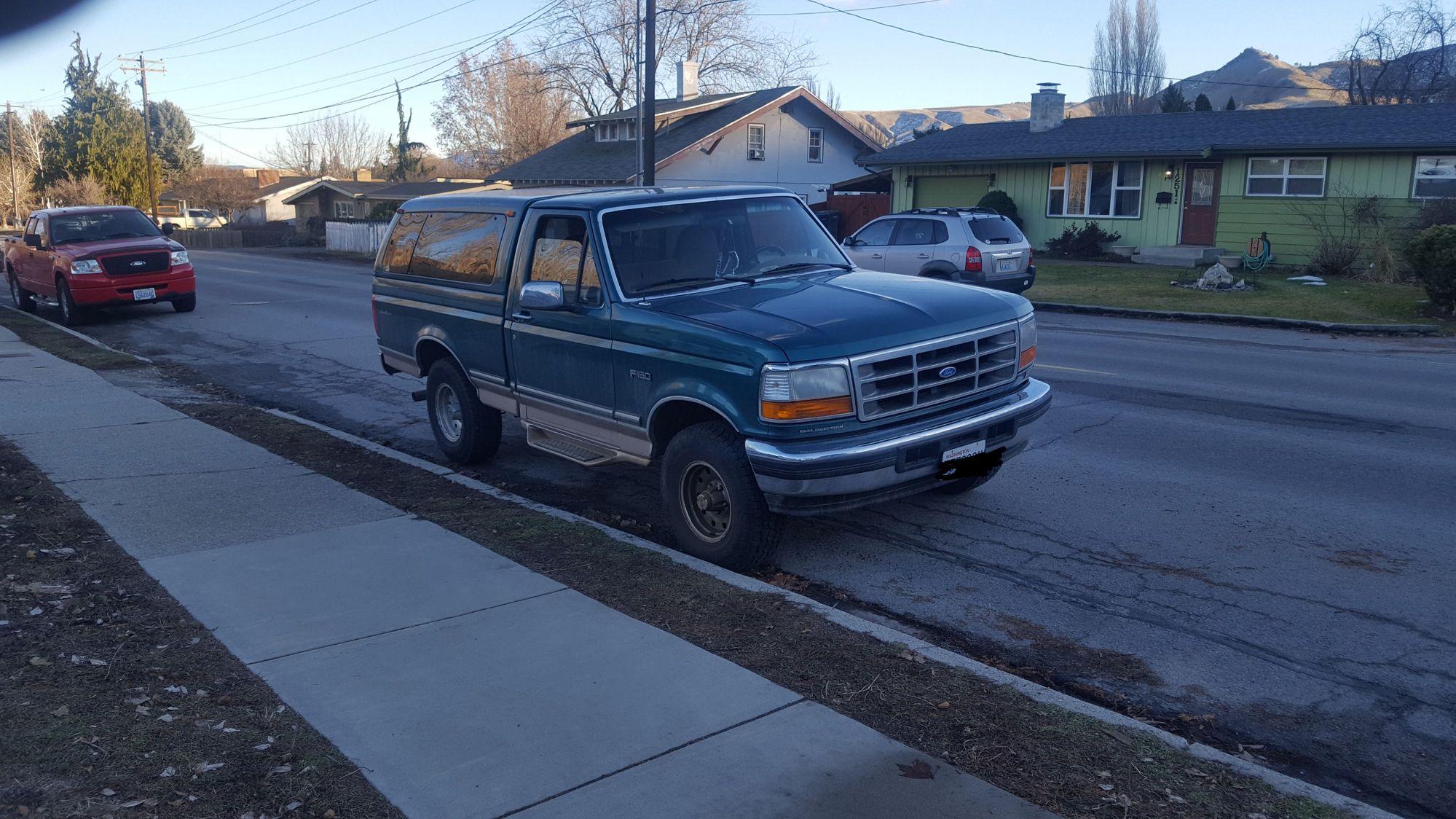

How she sits now, pretty dirty and you can see the metal dust and rusty schmoo on the passenger front due to wear from the brakes and metal on metal rubbing.
Rallyfast is offline
Reply With Quote
Old 02-04-2018, 07:50 PM
  #5
Senior Member

clintm6's Avatar

Join Date: Nov 2014
Location: NW Oregon
Posts: 362
Thanked 72 Times in 64 Posts
Default

I agree with BLDTruth! I'm not real high on the auto repair skill scale, but I managed to change out all the ball joints, all the tie rods, and the steering box myself. Mechanic shop just did the front wheel bearings though. If you're at all inclined, I'd suggest giving it a go yourself! You don't have to do it all at once either, I did my repairs at different times as money and time allowed. But I know you will love your truck even more when you get the front end all re-done, I know that's how it was for me!
clintm6 is offline
Reply With Quote
Old 02-04-2018, 08:45 PM
  #6
Bronco Guru

Steve83's Avatar

Join Date: Jan 2018
Location: Memphis, TN, Earth, Milky Way
Posts: 1,462
Thanked 169 Times in 157 Posts
Default

A 4WD with the cab steps still attached? WOW! You should have a COMPLETE description of the truck in your signature, though. Click this & read the caption:


(phone app link)


For lots of pics & diagrams explaining how to work on the brakes & hubs, click my signature link and scroll down to the Brakes & Hubs album. For the ball joints, the Font Diff & Ball Joints album is closer to the top of the album list.

That may be the first '96 EB I've seen with bright w/s mouldings. And the rear bumper doesn't look original... What does the badge under the R headlight say?

Last edited by Steve83; 02-04-2018 at 08:53 PM.
Steve83 is online now
Reply With Quote
Old 02-04-2018, 09:24 PM
  #7
Senior Member

BLDTruth's Avatar

Join Date: Jun 2015
Location: Oregon
Posts: 2,118
Thanked 314 Times in 286 Posts
Default

Those diagrams that Steve83 has are basically what I used when I rebuilt my front end. Really good stuff.
BLDTruth is online now
Reply With Quote
Old 02-05-2018, 02:21 AM
  #8
Junior Member
Thread Starter

Join Date: Feb 2018
Location: Central Washington
Posts: 8
Thanked 0 Times in 0 Posts
Default

Steve, your sig contains some serious info. I love it. I'll hopefully get a more detailed description of my vehicle tomorrow after work for you guys.

Last edited by Rallyfast; 02-09-2018 at 03:50 AM. Reason: not relevant info.
Rallyfast is offline
Reply With Quote
Old 02-05-2018, 11:26 AM
  #9
Bronco Guru

Steve83's Avatar

Join Date: Jan 2018
Location: Memphis, TN, Earth, Milky Way
Posts: 1,462
Thanked 169 Times in 157 Posts
Default

I don't recommend any of those Moog parts, except maybe the BJs. But I'd price MotorCraft on eBay & Amazon before buying any aftermarket brand. Look in those photo albums - many of the captions contain links for the parts shown.

For all the rubber bushings, I highly recommend Energy Polyurethane BLACK. I've driven on some for decades, removed them, thrown away the truck frame, and reused the poly in another chassis.
Steve83 is online now
Reply With Quote
Old 02-05-2018, 12:12 PM
  #10
Senior Member

BLDTruth's Avatar

Join Date: Jun 2015
Location: Oregon
Posts: 2,118
Thanked 314 Times in 286 Posts
Default

I can vouch for Moog on pretty much everything. I have their ball joints, coil springs, sway bar links and bushings, and tie rods on my truck. They are as good as OEM or better in most cases. Their problem solver series is one of the best lines out there.

Energy Suspension is also awesome - I have some of their bushings on my truck too.

AND I WILL SAY IT AGAIN IN CAPS SO EVERYONE HEARS ME. Use Rockauto.com. Unless you like wasting money.

My $.02.
