Any body guys with a door alignment how-to?
#1
Senior Member
Thread Starter
Any body guys with a door alignment how-to?
Hey all,
I've scoured all the door alignment threads and gained some great info on adjusting my doors in and out, but I can't find any info on up and forward.
Currently, my drivers side doors sit .125" (1/8) lower than my passenger doors and .100" back towards the bed. I believe my air leak issues are because my drivers side doors aren't up high enough to properly seal, nor located far enough forward.
Is this something I can do myself? I've taken this thing to 2 dealers for a total of 5 trips and nobody seems to care. I've gotten pretty good at the phone book method and adjusting them in and out.
Thanks.
I've scoured all the door alignment threads and gained some great info on adjusting my doors in and out, but I can't find any info on up and forward.
Currently, my drivers side doors sit .125" (1/8) lower than my passenger doors and .100" back towards the bed. I believe my air leak issues are because my drivers side doors aren't up high enough to properly seal, nor located far enough forward.
Is this something I can do myself? I've taken this thing to 2 dealers for a total of 5 trips and nobody seems to care. I've gotten pretty good at the phone book method and adjusting them in and out.
Thanks.
Last edited by k-stater88; 05-14-2016 at 09:25 PM.
#2
Senior Member

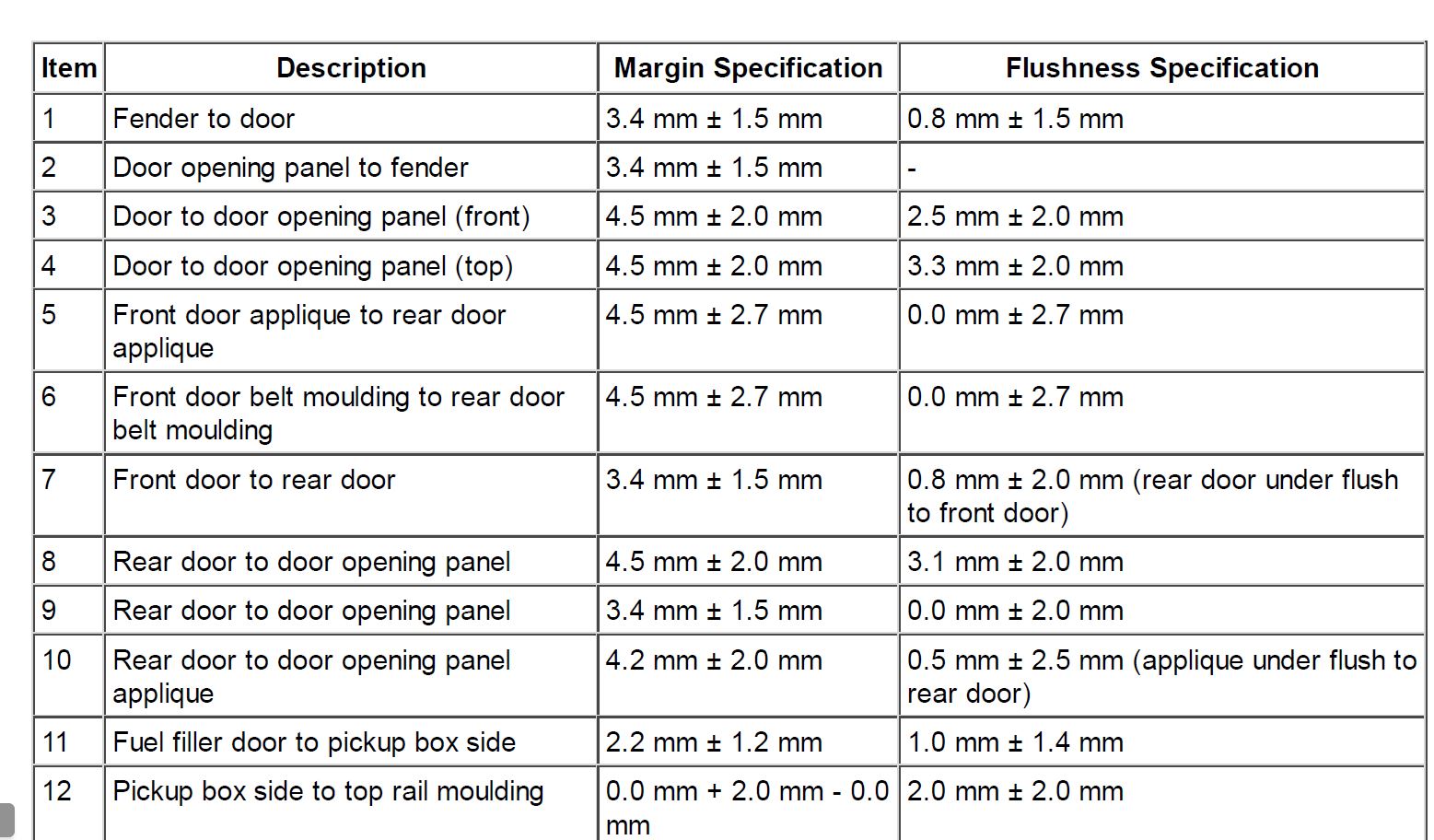

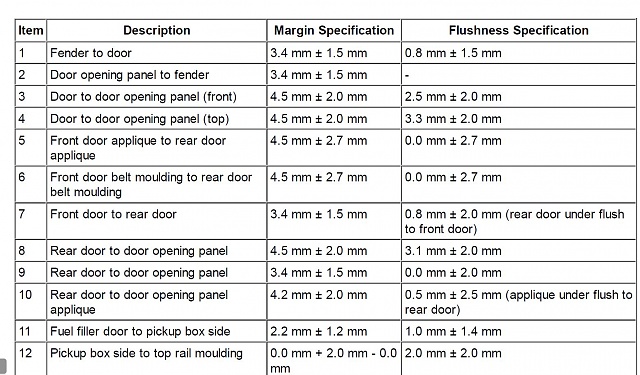

Does this help? Might be a base to start from.
The following 2 users liked this post by All Hat No Cattle:
Bu3askoor (02-28-2022),
k-stater88 (05-15-2016)
#3
Senior Member
Thread Starter
#4
Senior Member
You are welcome.
For future reference, that came out of the 8,700 page shop manual that I just bought on-line for $70 last week.
Unbelievable amount of detail in the manual.
https://www.f150forum.com/f118/repai...n-ford-329736/
For future reference, that came out of the 8,700 page shop manual that I just bought on-line for $70 last week.
Unbelievable amount of detail in the manual.
https://www.f150forum.com/f118/repai...n-ford-329736/
#5
Senior Member
Join Date: Dec 2012
Location: In way too hot southern Georgia
Posts: 1,454
Received 272 Likes
on
201 Posts
Check out this video:
while it is for the 2015, it explains how to measure door alignment. Just having the measurement isn't enough. You need to know where and how to make it.
while it is for the 2015, it explains how to measure door alignment. Just having the measurement isn't enough. You need to know where and how to make it.
Last edited by Ifallsguy; 05-16-2016 at 12:37 AM.
The following users liked this post:
SURF150 (05-20-2016)
#6
Senior Member
Thread Starter
I took it to a third dealer, and they said that my driver front door wasn't square to the cab. I repeatedly explained the amount of gap and the fact that my rear door is rubbing on the cab. None of the spacing issues were addressed. I called my dealer and told them I'm totally done messing with this and they can make it right or I'm leaving for another brand.
#7
Senior Member
Thread Starter
*****Solved*****
I was able to get behind the pillar and move the rear door forward and up. I also moved the driver door up and forward. It seals great and looks damn close to the passenger side.
Trending Topics
#8
#9
Senior Member
Thread Starter
NOT SOLVED - could it be a warped door?
My question is, after 3 body shops and I took time to fix these doors and nothing gets them right, is it possible I have a warped door from the factory? I'm trying to arm myself with as much info when I go to the dealer because they will obviously deny this as even an option. After scouring the other threads, it seems like minor adjustment makes them better, but nothing fixes mine.
