Need help finding idler arm for my truck.

Reply




Old 11-05-2017, 06:19 AM
  #1
Junior Member
Thread Starter

Join Date: Nov 2017
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default Need help finding idler arm for my truck.

I have a 98 f150 4x4 my idler arn has crapped out, I went to AutoZone,advanced there idler arms look nothing like the one on my truck. Mine had the 2.5 hole spacing but is shaped different. I will describe the best I can, where it mounts is 2 big bolts with 2.5 spacing the rod goes down to the arm that mounts to the center link
where these two connect it has a nut on the bottom so you can take them apart. The only new ones the parts store has are mad togethe. Very confused any help would be appreciated

Last edited by Scj105; 11-05-2017 at 06:20 AM. Reason: Type o
Scj105 is offline
Reply With Quote
Old 11-05-2017, 06:57 AM
  #2
WindowGuy

Join Date: Dec 2012
Location: Indianapolis
Posts: 1,093
Thanked 96 Times in 92 Posts
Default

The stuff AutoZone sells comes from China. It doesn't always look like ( or have then same quality) as factory stuff. Try going to a parts store that sell Moog parts. NAPA comes to mind. There are also some independent parts store in my area that sell better parts.
jkenprice1 is offline
Reply With Quote
Old 11-05-2017, 07:25 AM
  #3
Junior Member
Thread Starter

Join Date: Nov 2017
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default My part

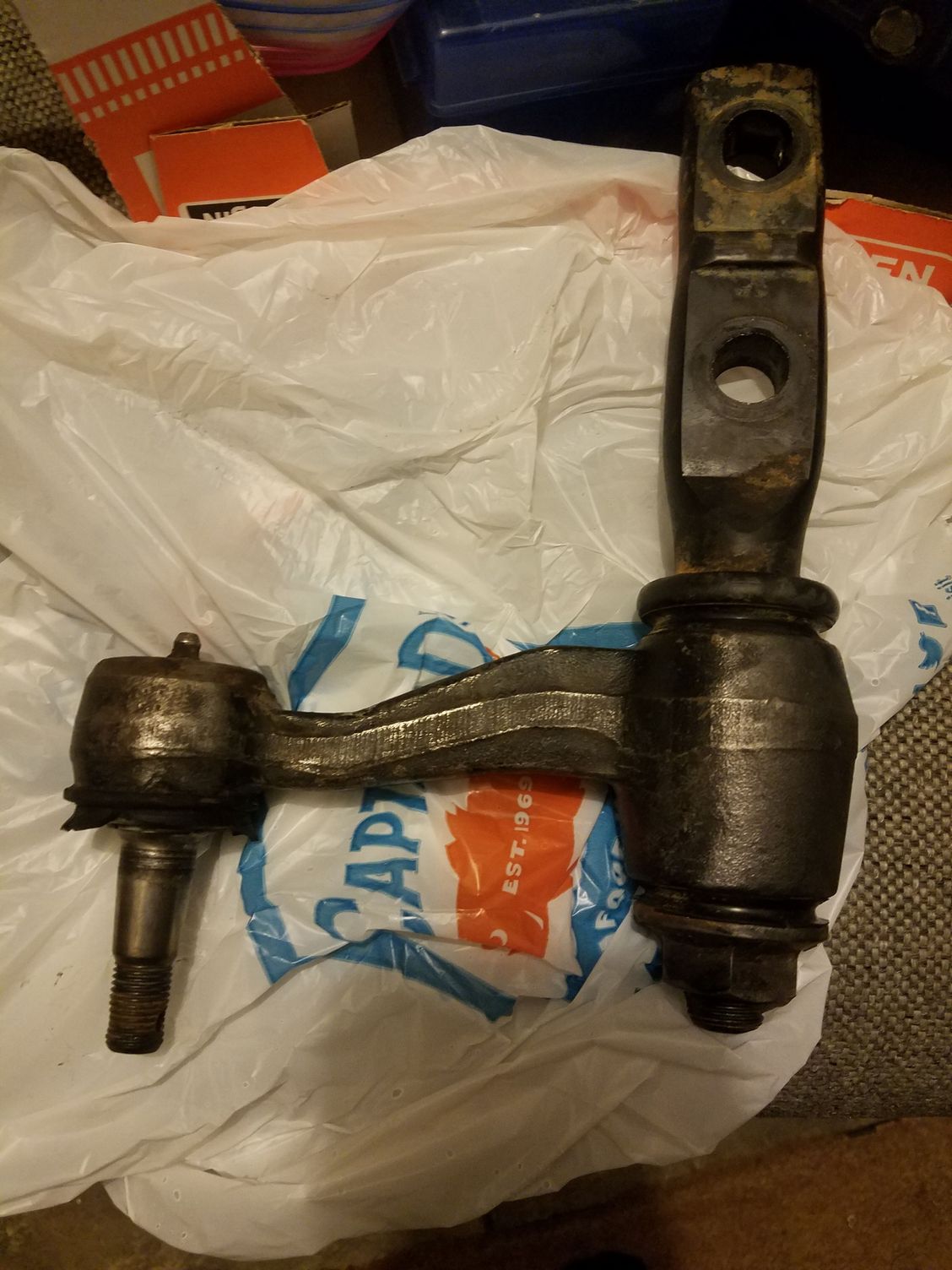

This is what i have
Scj105 is offline
Reply With Quote
Old 11-05-2017, 08:38 AM
  #4
Senior Member

Join Date: Jul 2011
Location: Tonopah. AZ.
Posts: 3,383
Thanked 471 Times in 310 Posts
Default

Just bolt the new design part on and drive, it is non serviceable but will more than likely out last the truck. They don't build them like they used to but that sometimes can be a good thing.
bubbabud is offline
Reply With Quote
Old 11-05-2017, 10:53 AM
  #5
Senior Member

akdoggie's Avatar

Join Date: Jul 2010
Location: Anchorage, Alaska
Posts: 5,669
Thanked 546 Times in 518 Posts
Default

Moog sells exactly what you have. K8739T is the number for 2.5 holed idler arm. You can take that number and have it cross referenced to make sure you get the correct matching part or go buy the Moog one at a good parts house, not AZ or Oreilly's. None will have the studded rod on the bottom anymore, because of design changes that make it more stable, and have less bushing wear.
Attached Images
akdoggie is online now
Reply With Quote
Old 11-05-2017, 10:57 AM
  #6
Senior Member

akdoggie's Avatar

Join Date: Jul 2010
Location: Anchorage, Alaska
Posts: 5,669
Thanked 546 Times in 518 Posts
Default

OOPS.. Proforged has the exact style you have, but the newer Moog is much better designed over the old thru shaft like you have. Problem is that Proforged only makes that design still for the 3.5 holed Idler arm. Nothing I can find anymore on the thru design for 2.5. I'm sure that they are out there still, but getting very difficult to replace with original.
Attached Images

Last edited by akdoggie; 11-05-2017 at 11:00 AM.
akdoggie is online now
Reply With Quote
Old 11-05-2017, 05:57 PM
  #7
Senior Member

jstockert's Avatar

Join Date: Aug 2013
Location: Gulfport MS
Posts: 1,236
Thanked 138 Times in 131 Posts
Default

Originally Posted by Scj105 View Post
This is what i have
Moog problem solver parts, I found mine at oreillys.
jstockert is offline
Reply With Quote
Old 11-05-2017, 08:03 PM
  #8
Senior Member

Bell Blue Raider's Avatar

Join Date: Mar 2009
Location: Bedford, TX
Posts: 2,144
Thanked 27 Times in 24 Posts
Default

if you can wait for it to ship, rockauto has the moog idler arm for 57.79
Bell Blue Raider is offline
Reply With Quote
Old 11-06-2017, 11:30 AM
  #9
Junior Member
Thread Starter

Join Date: Nov 2017
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Found one thanks guys
