LED bulbs in fogs only?


Old 03-13-2019, 10:04 AM
  #1
Member
Thread Starter

Join Date: Jun 2018
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
Default LED bulbs in fogs only?

02 f150 xlt, have factory fog lights and Lightning housings, both with halogen bulbs in them. I was just wondering, if I replace the fog bulbs only with LEDs, will it make a noticeable increase in visibility? Reason I ask is because I donít want to be the guy blinding everyone with LEDs in the headlights, but I donít use the fogs much and like the fact that I can just turn them on and off with the factory switch. Basically Iím just trying to get more light (while being switchable). Just wasnít sure if the fogs will put out enough to make a difference. Thoughts?
Baronet is offline
Old 03-13-2019, 11:56 AM
  #2
(Now an XLT in Colorado)

OhioLariat's Avatar

Join Date: Aug 2016
Location: Woodland Park, CO
Posts: 2,752
Thanked 270 Times in 242 Posts
Default

Yes, LED bulbs will likely put out more light, but no, it will probably not improve visibility, because the light will be scattered all over the place (i.e. it will not be focused). Furthermore, when you really need more light, you'll likely want to use your high beams, and the fog lights turn off when the high beams turn on (unless you've modded the switch). You will be far better off wiring up a set of auxiliary driving lights that can be manually switched, but wired such that they are available only when the high beams are on.

And thank you for being aware, and not being "that guy."
..
OhioLariat is online now
Old 03-13-2019, 12:53 PM
  #3
Member
Thread Starter

Join Date: Jun 2018
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks! Thatís exactly the kind of info I needed. I have the honeycomb grill so Iím thinking I will get a low cost pair of aux lights and put them behind there. Next question. Can you direct me to some info on how to wire these where they are only available with high beams on? This would make them to where I could leave them manually switched on, but they will only illuminate when I switch to high beams, right?
Baronet is offline
Old 03-13-2019, 01:05 PM
  #4
Senior Member

fordguy2100's Avatar

Join Date: Apr 2014
Location: Indiana
Posts: 5,200
Thanked 286 Times in 251 Posts
Default

Originally Posted by Baronet
Thanks! Thatís exactly the kind of info I needed. I have the honeycomb grill so Iím thinking I will get a low cost pair of aux lights and put them behind there. Next question. Can you direct me to some info on how to wire these where they are only available with high beams on? This would make them to where I could leave them manually switched on, but they will only illuminate when I switch to high beams, right?
Just wire them up to the wire that controls your brights.
fordguy2100 is online now
Old 03-13-2019, 02:16 PM
  #5
(Now an XLT in Colorado)

OhioLariat's Avatar

Join Date: Aug 2016
Location: Woodland Park, CO
Posts: 2,752
Thanked 270 Times in 242 Posts
Default

Originally Posted by Baronet View Post
Thanks! That’s exactly the kind of info I needed. I have the honeycomb grill so I’m thinking I will get a low cost pair of aux lights and put them behind there. Next question. Can you direct me to some info on how to wire these where they are only available with high beams on? This would make them to where I could leave them manually switched on, but they will only illuminate when I switch to high beams, right?

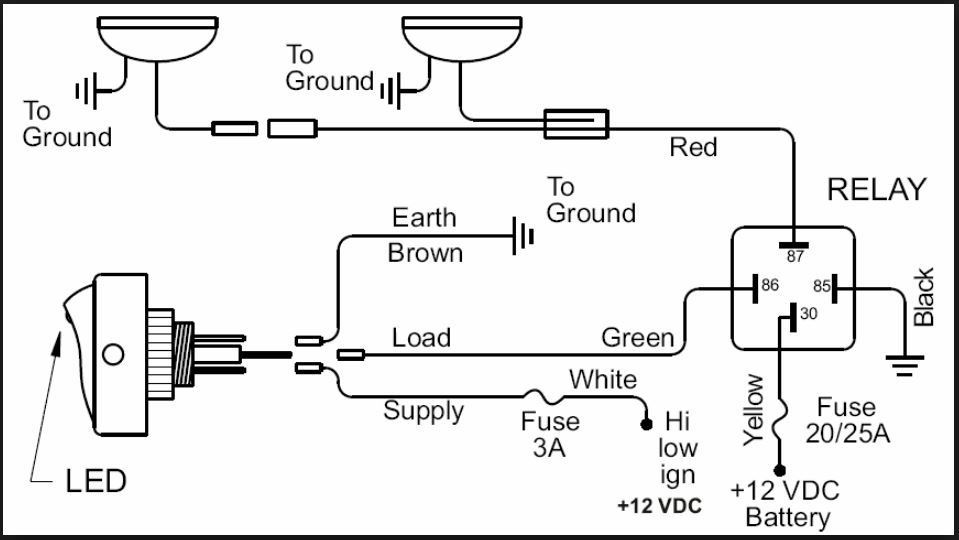

You will (should) use a relay to control the lights. Follow the diagram below, using the wire that is hot when the high beams are on as your +12VDC to feed the switch. There is a wire in/from the column-mounted multi-function switch, I just can't remember the color off the top of my head.




Originally Posted by fordguy2100 View Post
Just wire them up to the wire that controls your brights.
Through a switch and a relay, yes. Directly, no. The in-cab wire is a low-current circuit. You also don't want the aux lights on with your brights all the time. Cops tend not to like them, especially when you "flash" someone oncoming when they have their brights on inadvertently.
..

Last edited by OhioLariat; 03-13-2019 at 02:21 PM.
OhioLariat is online now
Old 03-13-2019, 03:05 PM
  #6
Senior Member

fordguy2100's Avatar

Join Date: Apr 2014
Location: Indiana
Posts: 5,200
Thanked 286 Times in 251 Posts
Default

Originally Posted by OhioLariat

You will (should) use a relay to control the lights. Follow the diagram below, using the wire that is hot when the high beams are on as your +12VDC to feed the switch. There is a wire in/from the column-mounted multi-function switch, I just can't remember the color off the top of my head.

Through a switch and a relay, yes. Directly, no. The in-cab wire is a low-current circuit. You also don't want the aux lights on with your brights all the time. Cops tend not to like them, especially when you "flash" someone oncoming when they have their brights on inadvertently.
..
Well if the wire can handle the voltage/amperage to power the brights on a halogen bulb, id assume it could add a couple of leds without issue. I wasn't talking about the switch wire in the cab...
Also I personally wouldn't wire anything directly attached to my high beams. I'd only wire them to an independent switch, not hard to switch on when you want and you have no issues of them being on when you don't.

And yeah a few states have laws that don't allow you to have 4 forward facing lights when two of them are brights.
fordguy2100 is online now
Old 03-13-2019, 04:33 PM
  #7
97 F150 XLT

white89gt's Avatar

Join Date: Dec 2015
Posts: 8,707
Thanked 599 Times in 570 Posts
Default

<----- This guy was pulled over for having 6 forward facing lights just 2 or 3 weeks ago. I have them perfectly aimed too....not blinding oncoming traffic. The cop was just flexing his muscles. But hey, he didn't give me a ticket - so I am thankful for that. I think most of that was because it was a blizzard, and he wanted to get back in his Explorer though, lol.

Also, I agree... never ever ever wire lights (or other accessories for that matter) directly to the switch. They may be "rated" for it, but they should not be used for it.
white89gt is offline
Old 03-13-2019, 04:53 PM
  #8
Senior Member

Z7What's Avatar

Join Date: Apr 2013
Location: New Orleans, LA
Posts: 5,825
Thanked 698 Times in 591 Posts
Default

Originally Posted by white89gt View Post
<----- This guy was pulled over for having 6 forward facing lights just 2 or 3 weeks ago. I have them perfectly aimed too....not blinding oncoming traffic. The cop was just flexing his muscles. But hey, he didn't give me a ticket - so I am thankful for that. I think most of that was because it was a blizzard, and he wanted to get back in his Explorer though, lol.

Also, I agree... never ever ever wire lights (or other accessories for that matter) directly to the switch. They may be "rated" for it, but they should not be used for it.
I to have been pulled over a couple years for 6 forward facing lights. HID Headlights, HID Fogs, & HID Driving Lights. Never in the 3 years I had them was I ever flashed, like you said the cop was just flexing his muscles and being that I knew the law that you can have more than 4 forward facing lights on at a time it was hard to argue. Which brings me to another question, how the head does the new F250 have quad beam headlights and fogs STOCK?

OP, look into DEPO fog housings. They are factory replacements but have a clean lens. I would suggest a good 3000K Halogen bulb in them. As for headlights, look into a set of Lightning Headlights and corners. They have clear lens also. You could even go a step further and retrofit a set up HID projectors in them.

Wayne
Z7What is online now
The Following User Says Thank You to Z7What For This Useful Post:
white89gt (03-13-2019)
Old 03-13-2019, 05:56 PM
  #9
(Now an XLT in Colorado)

OhioLariat's Avatar

Join Date: Aug 2016
Location: Woodland Park, CO
Posts: 2,752
Thanked 270 Times in 242 Posts
Default

Originally Posted by fordguy2100 View Post
Well if the wire can handle the voltage/amperage to power the brights on a halogen bulb, id assume it could add a couple of leds without issue. I wasn't talking about the switch wire in the cab...
Also I personally wouldn't wire anything directly attached to my high beams. I'd only wire them to an independent switch, not hard to switch on when you want and you have no issues of them being on when you don't.

And yeah a few states have laws that don't allow you to have 4 forward facing lights when two of them are brights.
The factory headlight wiring in these trucks (well, most vehicles in general) is barely adequate at best, and I wouldn't want to add one more amp to the load. There are posts all over lighting forums about running relay setups and larger wires netting higher output form otherwise stock systems. I just haven't had the gumption to do it to mine.
..
OhioLariat is online now
Old 03-13-2019, 06:00 PM
  #10
(Now an XLT in Colorado)

OhioLariat's Avatar

Join Date: Aug 2016
Location: Woodland Park, CO
Posts: 2,752
Thanked 270 Times in 242 Posts
Default

Originally Posted by Z7What View Post
I to have been pulled over a couple years for 6 forward facing lights. HID Headlights, HID Fogs, & HID Driving Lights. Never in the 3 years I had them was I ever flashed, like you said the cop was just flexing his muscles and being that I knew the law that you can have more than 4 forward facing lights on at a time it was hard to argue. Which brings me to another question, how the head does the new F250 have quad beam headlights and fogs STOCK?
Maybe because they're in one housing? Whatever the why, I DON'T LIKE THEM! those suckers are WAY too bright (as are Audi's LED's and other modern setups).
..
OhioLariat is online now
