2009 Lariat Super Crew 6R80 Trans Dipstick Kit Install


Old 02-10-2019, 09:58 AM
  #11
Junior Member
Thread Starter

Join Date: Aug 2018
Posts: 7
Likes: 0
Liked 1 Time in 1 Post
Default

Hello Gale;

The only consideration for installation is the attachment the dipstick tube upper bracket to the firewall. The kit includes 2 self taping stainless steel screws that, in my case, easily allowed for the bracket to firewall attachment.

As for filling, too date I've used a capless gas cap funnel to add a bottle of Transmedic, which is something I do to all my vehicles every year. The dipstick tube inside diameter is roughly 1/2" so there are certainly other funnels available but regardless of which one you use I suggest a slow fill rate due to the standing height of the dipstick tube. The exception of course is if you have a pump with the fill tube fully inserted into the dipstick tube.

If I can assist with any other questions let me know.
Cliff21 is offline
Old 02-10-2019, 10:12 AM
  #12
Senior Member

PerryB's Avatar

Join Date: May 2014
Location: Chico, Ca.
Posts: 3,622
Liked 567 Times in 467 Posts
Default

If the inside dia. of the tube is 1/2" or close, that's probably doable as a fill tube. Not speedy but doable. When the spring gets here I'm going to do fluid & filter on the 13, and probably throw a new lead frame harness in there while I'm at it. Maybe I'll put the dipstick tube in at that point.
PerryB is offline
Old 02-10-2019, 10:23 AM
  #13
Junior Member
Thread Starter

Join Date: Aug 2018
Posts: 7
Likes: 0
Liked 1 Time in 1 Post
Default

Hi PerryB;

I have a good quality hand pump that screws into the top of an ATF jug that I will use to fill the trans at the next pan drop. I've previously used this pump with a 30" fill line so don't anticipate an issue with being able to fill my trans in a reasonable amount of time. However even if I had to fill it with a standard funnel...it might take a bit of time but I find working on my truck to be quite relaxing.
Cliff21 is offline
The following users liked this post: Cliff21
PerryB (02-10-2019)
Old 02-10-2019, 11:16 AM
  #14
Senior Member

Join Date: Jun 2018
Posts: 143
Liked 17 Times in 15 Posts
Default

Originally Posted by PerryB View Post
I can relate. I once had a 79 F150 with a trans cooler line that leaked on the right header collector. This collector had an incomplete weld at the top where the ATF dripped. If the truck sat a few days, it would smoke out the exhaust when started. Don't think I didn't pull a few hairs figuring that one out!
Like yourself, I'm most interested in a dipstick tube that will work as a fill tube also. So far, no such luck. You'd bee all day trying to refill a 6R80 through that small tube.
Some designer needs a serious flogging for what they did....

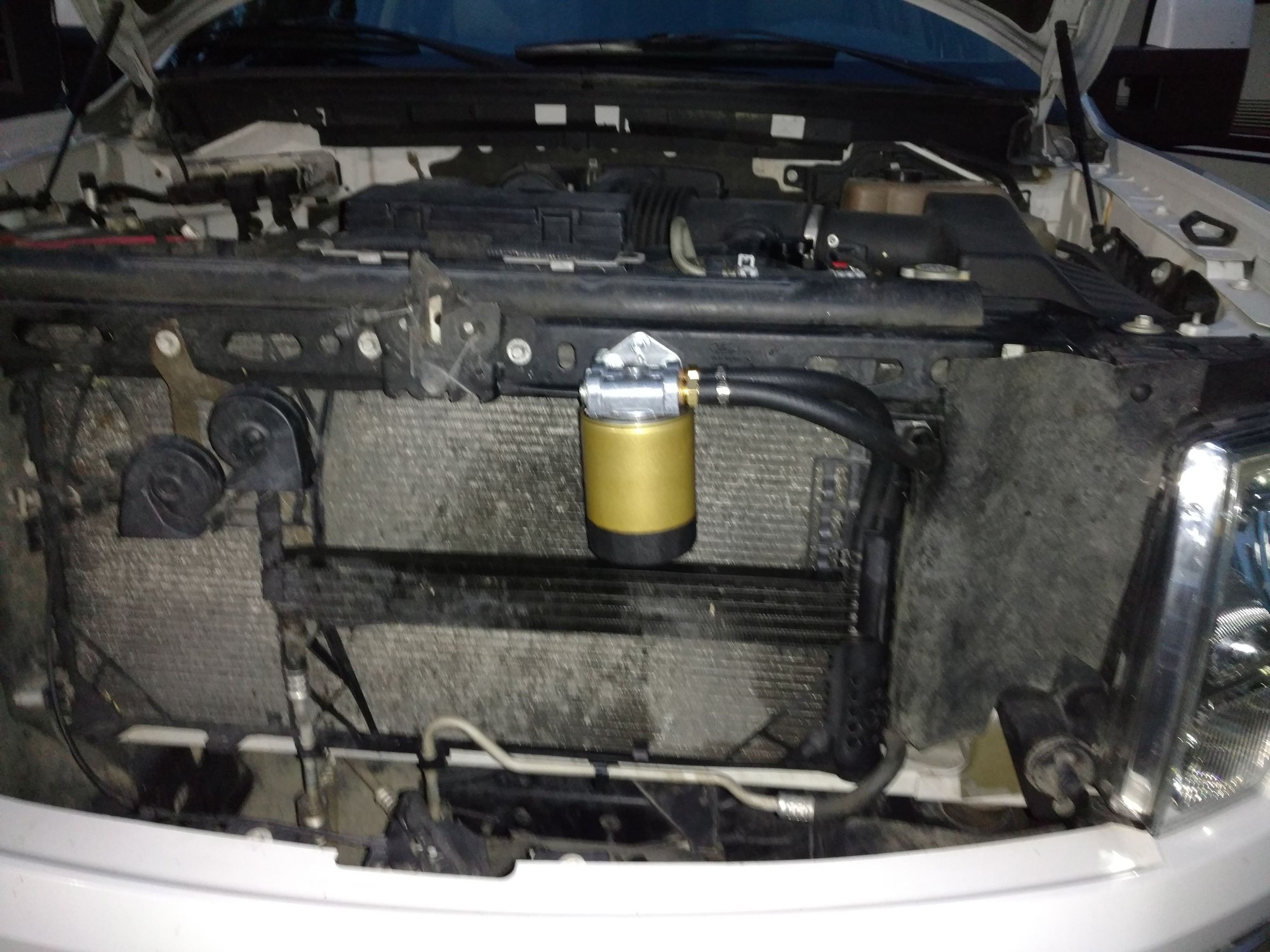

I was concerned about that for refilling. To do a bucket flush with 6R80 with the ATF thermostat I found the transmission will pump out the pan empty out of the return line and I can use a $13 12 volt pump to refill through the same line. I guess the ATF thermostat is acting as a diverter or something. I did it twice last summer before I got rained out getting out about 9 quarts total of some very dark brown ATF. This summer I plan to do a full removal of the current ATF and just keep the add on spin on changed adding new ATF to the new filter from time to time. After 3 filter changes the ATF out of the old filter is starting to get clear enough to pass a little light and have a hint of red in color. I got the truck showing 205K miles with no service history.


I think online from Amazon or Summit Racing the base was about $20. I took the one running down to OEM tow package cooler to the filter base and bought a short piece to go from the filter base to the aux cooler. There is little to no flow in the winter I have found.

Last edited by Gale Hawkins; 02-10-2019 at 11:21 AM.
Gale Hawkins is offline
