2015-2018 8" F150 Instrument Clusters

Reply




Old 09-12-2018, 05:53 PM
  #621
Member

BLU=F150's Avatar

Join Date: May 2016
Posts: 66
Thanked 7 Times in 7 Posts
Default

Originally Posted by Clusters by Livnitup View Post


I have 2015-2018 8" digital clusters for someone with an F150 XL/XLT that has a 2"/4.2" screen and would like to upgrade to the 8" digital cluster. Price is $600 each and includes all programming and 2-day Priority Shipping. I also have a 2016 F150 4.2" for $275 total including programming, shipping, and brand new front lens.

Programming includes:
1. mileage correction (your current/estimated mileage) programmed to 8" cluster **
2. your current/estimated Engine Hours & Engine Idle Hours programmed to 8" cluster
3. you truck's VIN coded to the 8" cluster (makes the cluster look legit to any software that connects to your truck like dealership's IDS software)
4. your truck's as-built values programmed to the 8" cluster so that the cluster is completely plug & play without any on-screen errors when plugged in. Examples of as-built values would be 2WD/4WD, fuel tank size, trailer brake controller, etc.
5. Any FORScan changes desired to the IPC like temps above engine/trans gauge, Average Speed menu item, Seatbelt Minder disabled, placard tire pressure specified value displayed in TPMS screen, etc.

** Proof of current mileage will be required

Extras:
$20 - blue tint added behind the gauge faces (BGG Blue) https://www.f150forum.com/showpost.p...postcount=1469
$100 - sport gauge faces only
$150 - Sport cluster conversion - includes sport gauge faces, red needle pointers, red LEDs soldered to the circuit board to illuminate the needle pointers red (pics of this below):
https://www.f150forum.com/showpost.p...&postcount=382
https://www.f150forum.com/f122/2015-...0/#post5794328

UPDATE 8/26/18: I currently have 10 2018 8" clusters (that work fine in 2017s also). I am currently out of stock of all 2015-2016 8" clusters and am currently adding people to a waiting list. The list for a 2016 8" is about 20 deep, and there are 5 people on the waiting list for a 2015 8" cluster. I do have some 2015-2018 4.2" clusters on hand if anyone is looking for those. I look multiple times/day for any 2015-2018 8" cluster to come up for sale and buy them when I can but if you're able to find one on your own and want to send to me for the programming I charge $130 total including shipping unless you want extras like new lens, tint, sport gauges/conversion.
15 gauges in stock?
BLU=F150 is offline
Reply With Quote
Old 09-12-2018, 06:01 PM
  #622
F150 Vendor
Thread Starter

Clusters by Livnitup's Avatar

Join Date: Dec 2015
Location: SoCal
Posts: 4,034
Thanked 103 Times in 68 Posts
Default

Originally Posted by BLU=F150 View Post
15 gauges in stock?

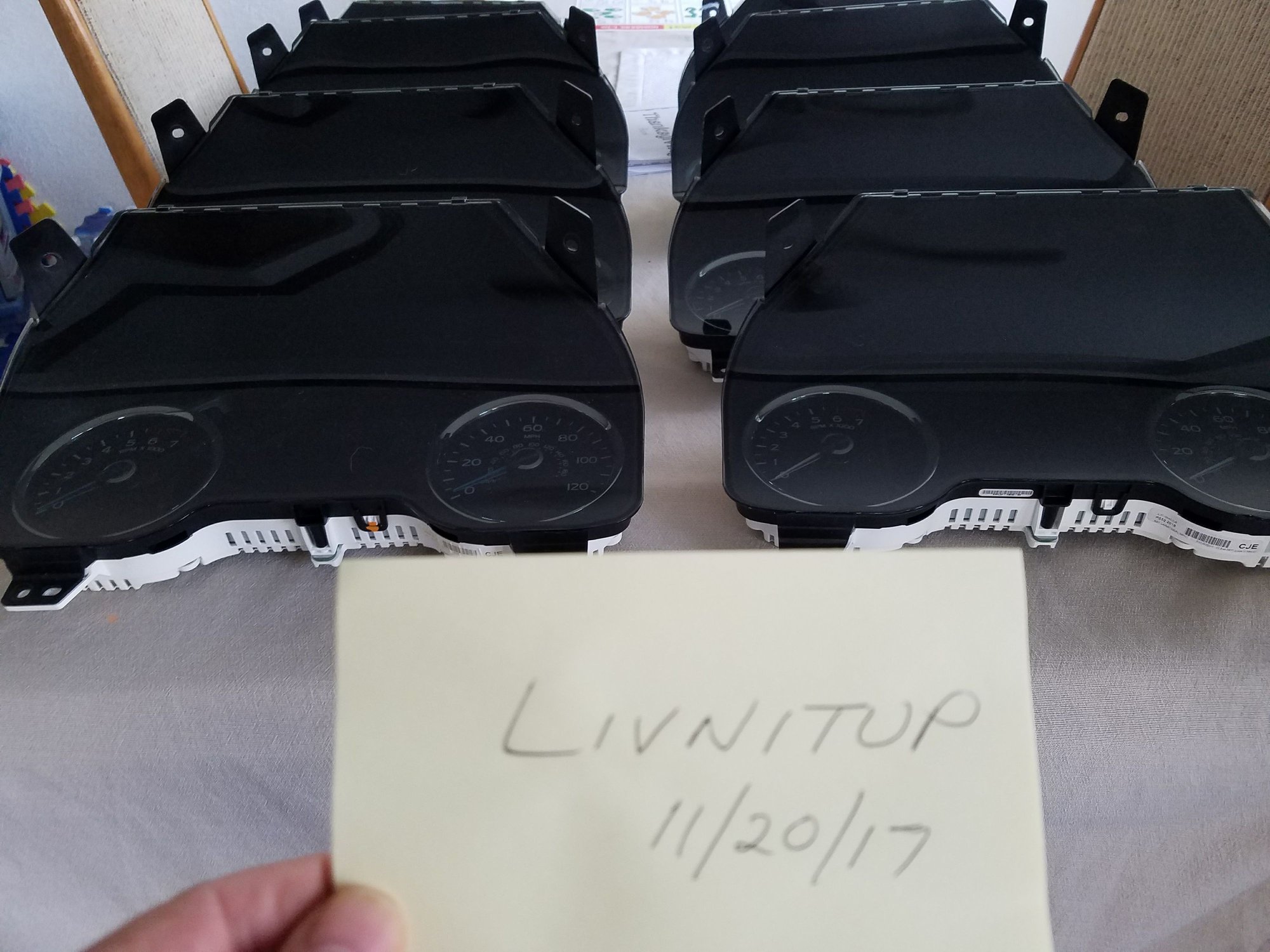

(8) 2018 8" clusters in stock and (2) 2017 8" clusters in stock.
Clusters by Livnitup is online now
Reply With Quote
Old 09-14-2018, 09:08 AM
  #623
Member

kadjenter's Avatar

Join Date: Feb 2016
Location: Houston, TX
Posts: 41
Thanked 3 Times in 2 Posts
Default

For a 2015 truck, do I need a used cluster from a 2015? Can I buy a new cluster for my 2015 and send to you for programming?
kadjenter is online now
Reply With Quote
Old 09-14-2018, 10:17 AM
  #624
F150 Vendor
Thread Starter

Clusters by Livnitup's Avatar

Join Date: Dec 2015
Location: SoCal
Posts: 4,034
Thanked 103 Times in 68 Posts
Default

Originally Posted by kadjenter View Post
For a 2015 truck, do I need a used cluster from a 2015? Can I buy a new cluster for my 2015 and send to you for programming?
Either one works. A new cluster special ordered from Ford will run about $860 + tax because there's a $300 core charge. When ordering a new cluster you'd need to have a VIN handy from a 2015 Lariat/King Ranch/Platinum to give them over the phone. The new cluster special ordered from Ford will come with mileage programmed but will still need engine hours, engine idle hours, and your truck's as-built programming done to it.
Clusters by Livnitup is online now
Reply With Quote
Old 09-14-2018, 01:43 PM
  #625
Member

Join Date: Aug 2018
Posts: 51
Thanked 3 Times in 2 Posts
Default

Clusters - Might have been mentioned, not sure, but if we bought a used cluster, could you re-program it for our particular truck/build?
dhayse32 is offline
Reply With Quote
Old 09-14-2018, 01:58 PM
  #626
F150 Vendor
Thread Starter

Clusters by Livnitup's Avatar

Join Date: Dec 2015
Location: SoCal
Posts: 4,034
Thanked 103 Times in 68 Posts
Default

Originally Posted by dhayse32 View Post
Clusters - Might have been mentioned, not sure, but if we bought a used cluster, could you re-program it for our particular truck/build?
Yes, I've done that for lots of guys.
Clusters by Livnitup is online now
Reply With Quote
The Following User Says Thank You to Clusters by Livnitup For This Useful Post:
dhayse32 (09-14-2018)
Old 09-14-2018, 10:58 PM
  #627
Senior Member

Join Date: Sep 2015
Posts: 132
Thanks: 0
Thanked 13 Times in 9 Posts
Default

Couple questions. What's the difference in the '17 and '18 cluster? Also, what's the possibility of getting the Raptor gauge faces?
Redalty is offline
Reply With Quote
Old 09-14-2018, 11:06 PM
  #628
F150 Vendor
Thread Starter

Clusters by Livnitup's Avatar

Join Date: Dec 2015
Location: SoCal
Posts: 4,034
Thanked 103 Times in 68 Posts
Default

Originally Posted by Redalty View Post
Couple questions. What's the difference in the '17 and '18 cluster? Also, what's the possibility of getting the Raptor gauge faces?
Very little, on the 2018 they moved the % Oil Life Remaining from the Truck Info screen and buried it under the settings menu called Oil Life Reset for some reason. Some other menu items have slightly different wording and I think someone reported that the turn signal indicators moved upward or downward (can't remember) from the previous year.

The Raptor gauge faces go up to 140mph and if you installed them on a cluster meant for the 120mph max then your current speed shown on that analog gauge would be wrong and different compared to the digital speedometer. If you don't care and want them anyways then USSpeedo sells an aftermarket set on eBay but I can't attest for the quality of them.

Last edited by Clusters by Livnitup; 09-14-2018 at 11:11 PM.
Clusters by Livnitup is online now
Reply With Quote
Old 09-18-2018, 10:28 PM
  #629
Junior Member

Join Date: May 2018
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Default Upgrade 8" Digital Guage for 2017 Ford F150 2.7 EcoBoost XL

Originally Posted by Clusters by Livnitup View Post


I have 2015-2018 8" digital clusters for someone with an F150 XL/XLT that has a 2"/4.2" screen and would like to upgrade to the 8" digital cluster. Price is $600 each and includes all programming and 2-day Priority Shipping. I also have a 2016 F150 4.2" for $275 total including programming, shipping, and brand new front lens.

Programming includes:
1. mileage correction (your current/estimated mileage) programmed to 8" cluster **
2. your current/estimated Engine Hours & Engine Idle Hours programmed to 8" cluster
3. you truck's VIN coded to the 8" cluster (makes the cluster look legit to any software that connects to your truck like dealership's IDS software)
4. your truck's as-built values programmed to the 8" cluster so that the cluster is completely plug & play without any on-screen errors when plugged in. Examples of as-built values would be 2WD/4WD, fuel tank size, trailer brake controller, etc.
5. Any FORScan changes desired to the IPC like temps above engine/trans gauge, Average Speed menu item, Seatbelt Minder disabled, placard tire pressure specified value displayed in TPMS screen, etc.

** Proof of current mileage will be required

Extras:
$20 - blue tint added behind the gauge faces (BGG Blue) https://www.f150forum.com/showpost.p...postcount=1469
$100 - sport gauge faces only
$150 - Sport cluster conversion - includes sport gauge faces, red needle pointers, red LEDs soldered to the circuit board to illuminate the needle pointers red (pics of this below):
https://www.f150forum.com/showpost.p...&postcount=382
https://www.f150forum.com/f122/2015-...0/#post5794328

UPDATE 8/26/18: I currently have 10 2018 8" clusters (that work fine in 2017s also). I am currently out of stock of all 2015-2016 8" clusters and am currently adding people to a waiting list. The list for a 2016 8" is about 20 deep, and there are 5 people on the waiting list for a 2015 8" cluster. I do have some 2015-2018 4.2" clusters on hand if anyone is looking for those. I look multiple times/day for any 2015-2018 8" cluster to come up for sale and buy them when I can but if you're able to find one on your own and want to send to me for the programming I charge $130 total including shipping unless you want extras like new lens, tint, sport gauges/conversion.
I am interested in upgrading my 2017 Ford F150 2.7 EcoBoost XL gauges to an 8" digital gauge that you talk about. Is this possible?
Kookym3 is online now
Reply With Quote
Old 09-18-2018, 10:43 PM
  #630
F150 Vendor
Thread Starter

Clusters by Livnitup's Avatar

Join Date: Dec 2015
Location: SoCal
Posts: 4,034
Thanked 103 Times in 68 Posts
Default

Originally Posted by Kookym3 View Post
I am interested in upgrading my 2017 Ford F150 2.7 EcoBoost XL gauges to an 8" digital gauge that you talk about. Is this possible?
Yes, sent you a personal message about this.
Clusters by Livnitup is online now
Reply With Quote
