Driveshaft/pinion angle?


Old 03-27-2019, 09:49 PM
  #21
Senior Member

Z7What's Avatar

Join Date: Apr 2013
Location: New Orleans, LA
Posts: 5,906
Received 718 Likes on 607 Posts
Default

Originally Posted by Aespos295

Z7What So just zooming in on the blocks in the photo, it looks like they are exactly how you said they should be? Am I missing some key part of this puzzle?
Measure them don't go by a picture take at a angle from 6' away.

Wayne
Z7What is offline
Old 03-27-2019, 10:46 PM
  #22
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Default

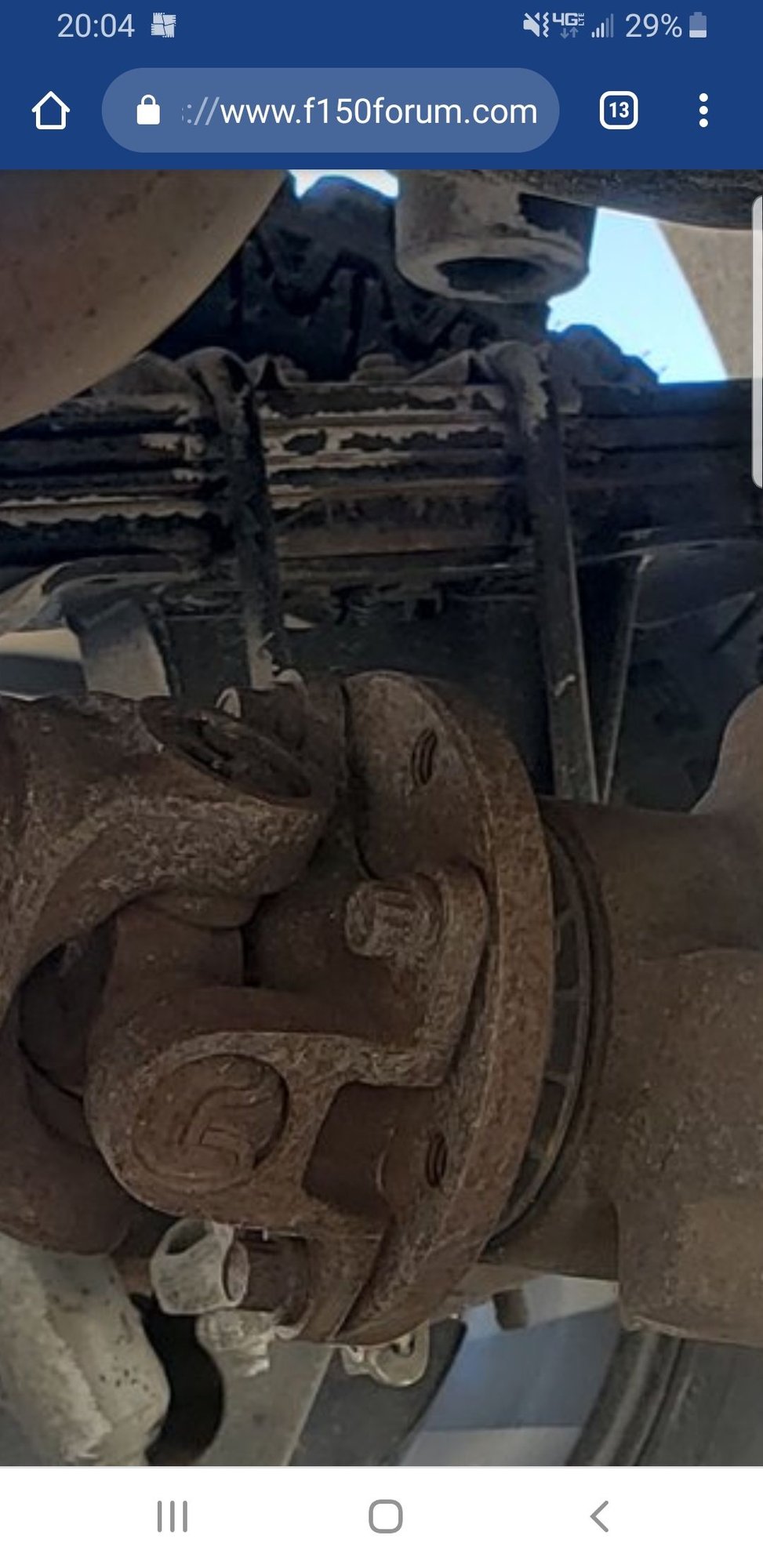

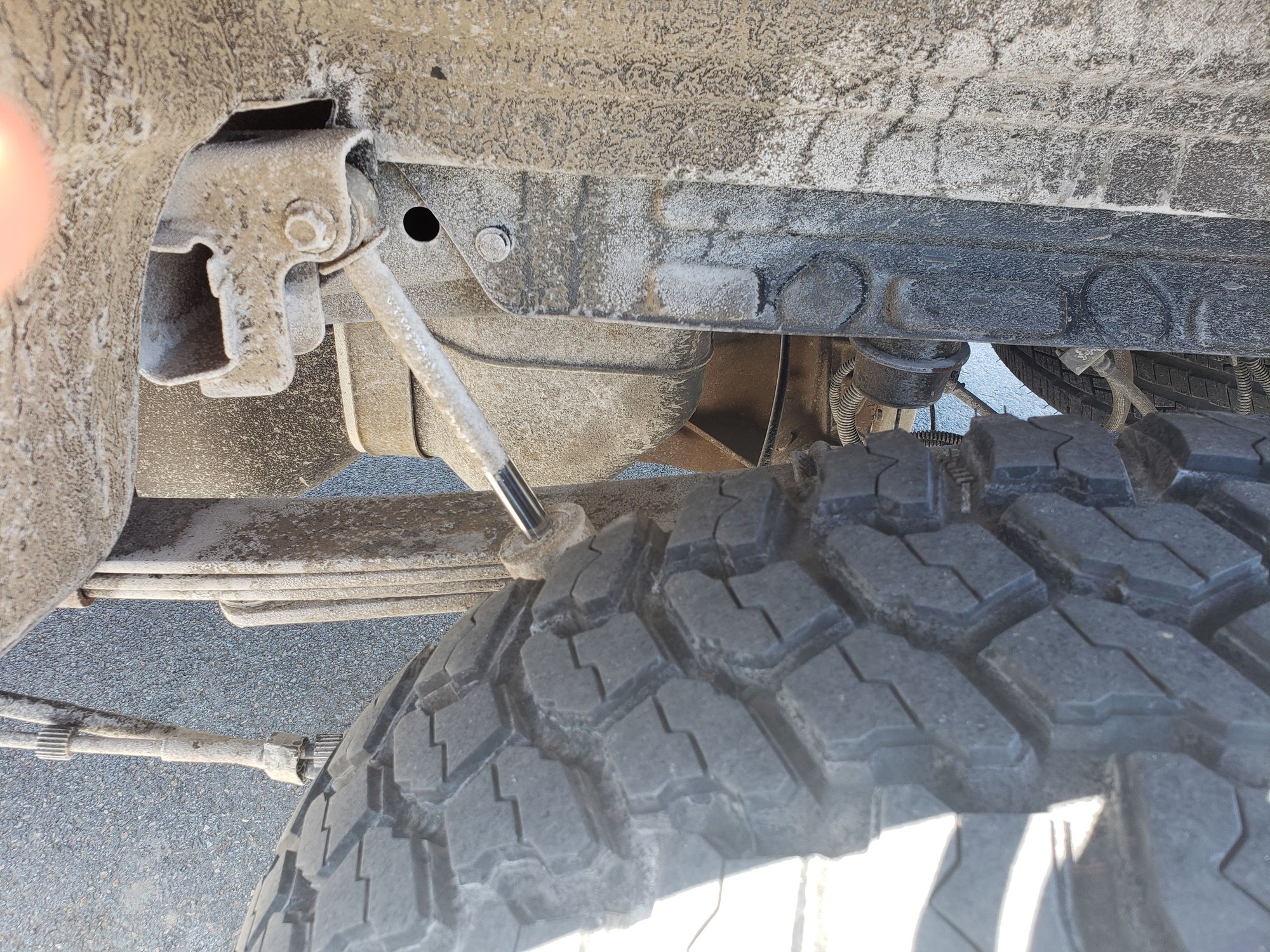

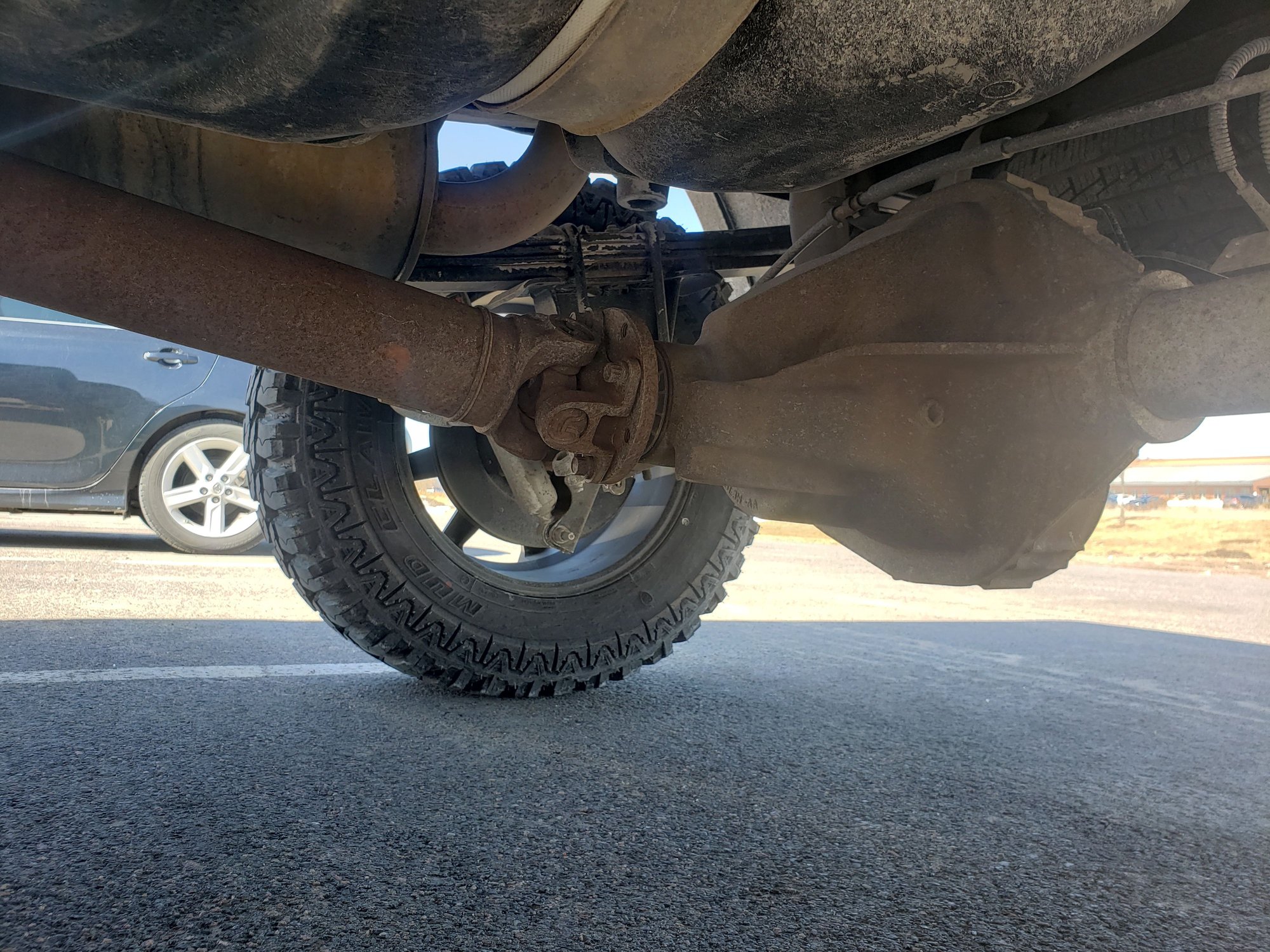

chevsuz12 yes it's me what are the odds of that! I did call and they told me that the 2wd kits dont come with them. I've been doing research frantically online trying to find anything on 2wd and the need for driveshaft spacers, but haven't found anything. Here's some pictures to help hopefully. I'm really hoping I'm just an idiot and they're on backwards, because I cant for the lift of me figure it out. The first picture is just zoomed in on the last one to try and give you a better idea of the lift block placement.
Aespos295 is offline
Old 03-27-2019, 11:07 PM
  #23
Fleet Technician

Rnlcomp's Avatar

Join Date: Feb 2013
Location: Big Easy
Posts: 22,948
Received 4,635 Likes on 3,621 Posts
Default

Originally Posted by Aespos295 View Post
To anyone else who went and lifted their 2wd, did yall run in to similar issues? Or did you have to buy aftermarket parts to make up for anything your kit didnt include?
I put the RC 4" on my 2wd several years ago. No issues at all but I do this kind of thing for a living. Everything you need is included in the kit, ya just have to orient it properly.

P.S. To minimize confusion in the future. Post in one (1) thread instead of cross posting in other sections of the forum relating to the same concern.
.
Rnlcomp is online now
The following users liked this post:
raceman (03-28-2019)
Old 03-27-2019, 11:45 PM
  #24
Junior Member

Join Date: Oct 2015
Location: Illinois
Posts: 20
Likes: 0
Received 1 Like on 1 Post
Default

I do notice something is missing in your pictures! If you look at your lift block, there are additional holes on the outer edges. You should have installed the smaller u-bolts that came with your kit in these holes. Go back and look at my youtube video.
look closely at the lift block and you will notice how you are missing the smaller u-bolts. I do not know if this will resolve your issue, but it should help.
chevsuz12 is offline
Old 03-28-2019, 09:29 AM
  #25
Sociopath Truckdriver

johnday's Avatar

Join Date: Jun 2014
Location: Barton City Michigan
Posts: 16,399
Received 2,726 Likes on 2,208 Posts
Default

What are "antiwrap bolts"?
johnday is online now
Old 03-29-2019, 01:35 PM
  #26
Senior Member

raceman's Avatar

Join Date: Nov 2012
Location: Florida
Posts: 261
Received 27 Likes on 23 Posts
Default

Originally Posted by chevsuz12 View Post
I do notice something is missing in your pictures! If you look at your lift block, there are additional holes on the outer edges. You should have installed the smaller u-bolts that came with your kit in these holes. Go back and look at my youtube video. https://www.youtube.com/watch?v=E4bhtl2Pw9w look closely at the lift block and you will notice how you are missing the smaller u-bolts. I do not know if this will resolve your issue, but it should help.
There is no smaller bolts???
raceman is offline
Old 03-29-2019, 01:54 PM
  #27
Sociopath Truckdriver

johnday's Avatar

Join Date: Jun 2014
Location: Barton City Michigan
Posts: 16,399
Received 2,726 Likes on 2,208 Posts
Default

Originally Posted by johnday View Post
What are "antiwrap bolts"?
Video didn't show when I initially replied. Now I know. Don't know what to think of it though. Thinking the better way would be rearching the springs if I was gonna go that high. Just my opinion.
johnday is online now
Old 03-29-2019, 07:23 PM
  #28
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Default Update

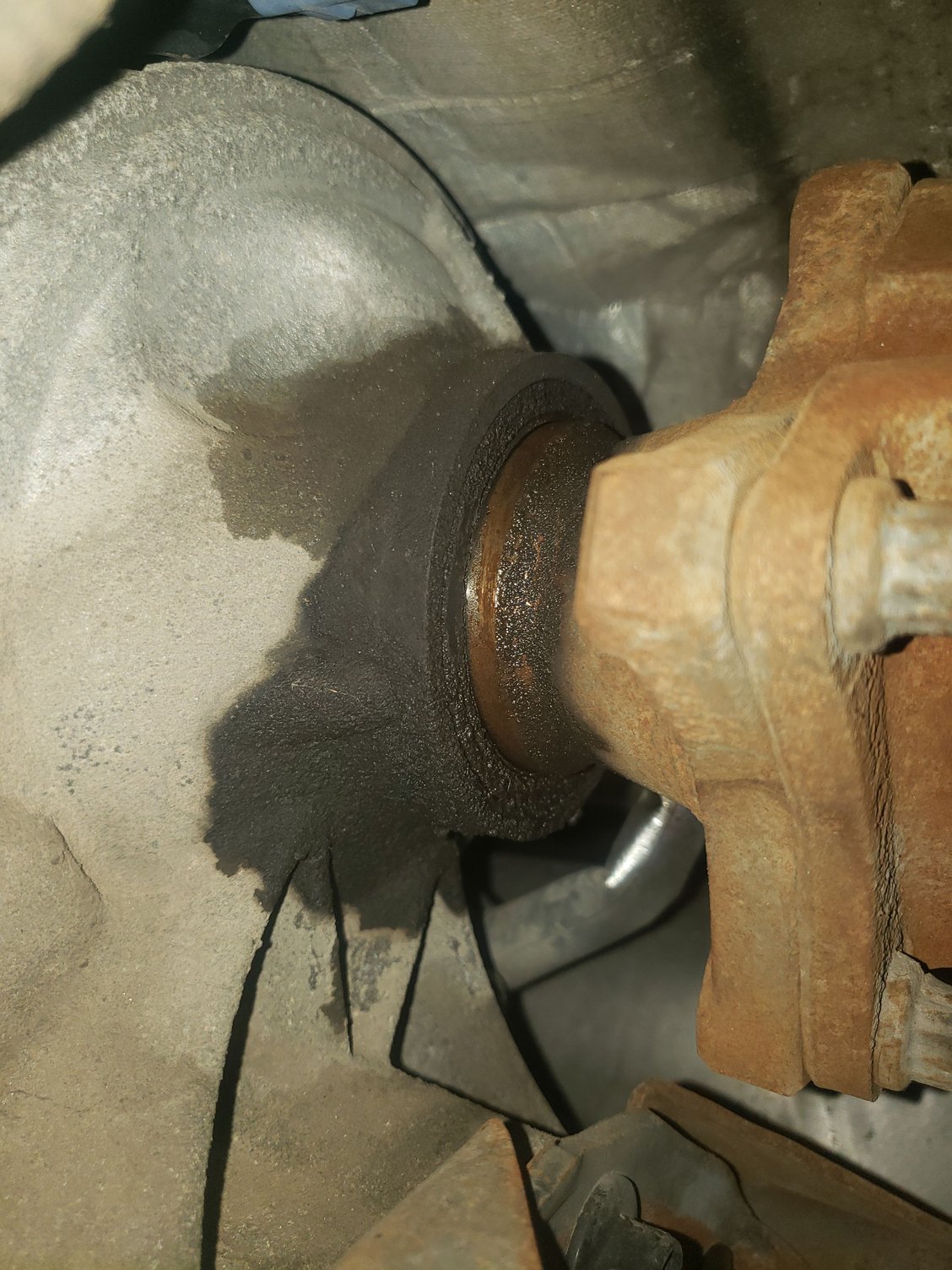

Bringing the truck in tomorrow but I think I found the problem today while washing the truck. What on earth is causing this and how do I fix it? Would backwards blocks cause this to happen?
Aespos295 is offline
Old 03-30-2019, 06:38 AM
  #29
Senior Member

raceman's Avatar

Join Date: Nov 2012
Location: Florida
Posts: 261
Received 27 Likes on 23 Posts
Default

Yes it did it to mine, That's how I discovered they were backwards, because transfer case was leaking and I had a vibration
raceman is offline
