2013 F150 Lariat Blend Door Actuators


Old 01-11-2019, 06:29 PM
  #1
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 4
Thanked 0 Times in 0 Posts
Default 2013 F150 Lariat Blend Door Actuators

I'm hearing a clicking noise when I change the temperature and it's defaulted to either full heat or full ac.

Does anyone know of a guide that shows the location of each blend door actuator?

Thank you,
josephfredend is offline
Old 01-11-2019, 06:55 PM
  #2
Fleet Technician

Rnlcomp's Avatar

Join Date: Feb 2013
Location: Big Easy
Posts: 22,264
Thanked 4,406 Times in 3,469 Posts
Default

One of them is behind the radio and fairly easy to change.



The other requires removal of the dash.




.

Last edited by Rnlcomp; 01-11-2019 at 07:02 PM.
Rnlcomp is offline
Old 01-11-2019, 06:59 PM
  #3
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 4
Thanked 0 Times in 0 Posts
Default

Do you know how many there are?

I have heard there are either 2 or 4 but haven't been able to figure out which applies to my truck.

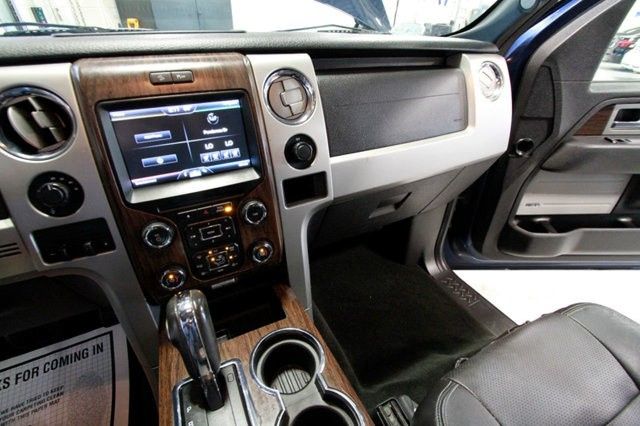

I have the interior shown below.

Thanks for being willing to answer.

josephfredend is offline
Old 01-11-2019, 07:04 PM
  #4
Fleet Technician

Rnlcomp's Avatar

Join Date: Feb 2013
Location: Big Easy
Posts: 22,264
Thanked 4,406 Times in 3,469 Posts
Default

2 blend air doors. There are other actuators that control air flow.
.
Rnlcomp is offline
Old 01-11-2019, 07:05 PM
  #5
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 4
Thanked 0 Times in 0 Posts
Default

Thanks.

If you don't mind me asking.

Are those schematics available online for free somewhere?
josephfredend is offline
Old 01-11-2019, 07:07 PM
  #6
Fleet Technician

Rnlcomp's Avatar

Join Date: Feb 2013
Location: Big Easy
Posts: 22,264
Thanked 4,406 Times in 3,469 Posts
Default

Originally Posted by josephfredend View Post
Thanks.

If you don't mind me asking.

Are those schematics available online for free somewhere?
Yeah right here in this thread.
.
Rnlcomp is offline
The Following User Says Thank You to Rnlcomp For This Useful Post:
josephfredend (01-11-2019)
Old 01-11-2019, 07:10 PM
  #7
Junior Member
Thread Starter

Join Date: Jan 2019
Posts: 4
Thanked 0 Times in 0 Posts
Default

In that case any chance you could post the schematics for the other air flow related actuators?
josephfredend is offline
Old 01-11-2019, 07:10 PM
  #8
Fleet Technician

Rnlcomp's Avatar

Join Date: Feb 2013
Location: Big Easy
Posts: 22,264
Thanked 4,406 Times in 3,469 Posts
Default

If you want the shop manual Ford dealer tech's and I my self use here's a link for your truck. http://www.helminc.com/helm/product2...313&itemtype=N
.
Rnlcomp is offline
Old 01-11-2019, 07:14 PM
  #9
Fleet Technician

Rnlcomp's Avatar

Join Date: Feb 2013
Location: Big Easy
Posts: 22,264
Thanked 4,406 Times in 3,469 Posts
Default

Recirc/fresh air actuator



Floor/panel/defrost actuator


.
Rnlcomp is offline
