F150 Backrack Install


Old 02-11-2019, 01:31 PM
  #1
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 27
Likes: 0
Liked 1 Time in 1 Post
Default F150 Backrack Install

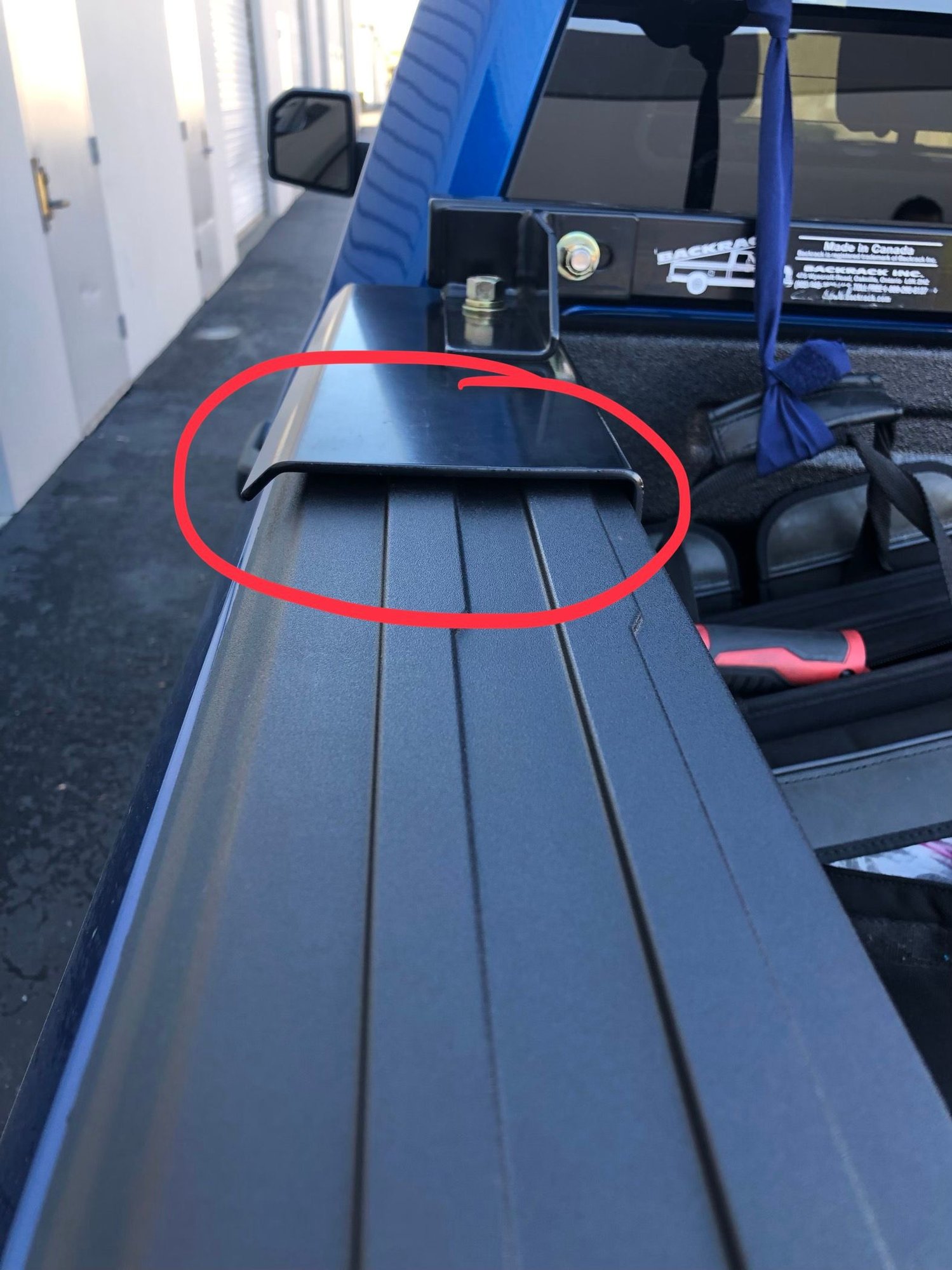

I cut out my front stake pockets and installed my backrack, on the passenger side the rear of the rail plate sits flush with the plastic bed cap, however my driver side isnít sitting as flush,

Iím wondering if this is normal due to the stupid design of the ridges on the plastic bed caps, attached a couple of photos,

Anyone have one installed on a 2015+ F150?

Thanks
index1489 is offline
Old 02-11-2019, 01:35 PM
  #2
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 27
Likes: 0
Liked 1 Time in 1 Post
Default



Plastic ridge Iím talking about attached below.
index1489 is offline
Old 02-11-2019, 02:42 PM
  #3
Senior Member

Join Date: Oct 2009
Posts: 420
Liked 21 Times in 20 Posts
Default

I just installed mine yesterday. Both sides fit flush. But I have the 6.5 box so I only had to pop out the inserts that cover the hole. No cutting involved.
lazer is offline
Old 02-11-2019, 03:06 PM
  #4
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 27
Likes: 0
Liked 1 Time in 1 Post
Default

Yea yours is different with the caps, I believe the ridges end around the cap area allowing your spacer plate to sit flat, need to see someone with a 5.5 bed.
index1489 is offline
Old 02-11-2019, 04:06 PM
  #5
Senior Member

Join Date: Feb 2018
Location: SE MA
Posts: 253
Liked 31 Times in 21 Posts
Default

I would say the bolt is probably leaning in a tad on the one not sitting flush. I had a similar issue using the tonneau adapter plate, which I re adjusted. The toolbox mount uses a type of filler plate that holds the bolt in position and prevents it from tilting. The 6.5 beds use a metal filler plate that helps hold the bolt in place easier when tightening it.
southchatham is offline
Old 02-11-2019, 04:48 PM
  #6
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 27
Likes: 0
Liked 1 Time in 1 Post
Default

This install has that same plate, but it comes with a foam pad you stick on the front of it to get the rack to tilt back from the cab.

Maybe I wasnít suppose to install it on a 5.5 bed because of the ridges? The instructions didnít say, I contacted backrack and Iím still waiting for a response.
index1489 is offline
Old 02-11-2019, 04:51 PM
  #7
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 27
Likes: 0
Liked 1 Time in 1 Post
Default



This plate, see on the long beds with the caps no ridges are present and it sits flush, on my bed the ridges run right to the stake pocket.

I wonder if the solution is to place the spacer over the plastic rail, trace it out and cut it so it sits flush on the metal.

Last edited by index1489; 02-11-2019 at 05:30 PM.
index1489 is offline
Old 02-11-2019, 07:57 PM
  #8
Senior Member

Join Date: Feb 2018
Location: SE MA
Posts: 253
Liked 31 Times in 21 Posts
Default

Originally Posted by index1489 View Post


This plate, see on the long beds with the caps no ridges are present and it sits flush, on my bed the ridges run right to the stake pocket.

I wonder if the solution is to place the spacer over the plastic rail, trace it out and cut it so it sits flush on the metal.
I don't think you use the spacer plate if the ridges go all the way back.
southchatham is offline
Old 02-11-2019, 09:06 PM
  #9
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 27
Likes: 0
Liked 1 Time in 1 Post
Default

I wish the instructions mentioned that, I still would rather have it on there as itís another point that prevents forward movement on the rack,

If thatís the case Iíll put some 3M foam tape underneath and cut the plastic so it sits flush on the metal bed rail.
index1489 is offline
Old 02-11-2019, 09:32 PM
  #10
Junior Member
Thread Starter

Join Date: Feb 2009
Posts: 27
Likes: 0
Liked 1 Time in 1 Post
Default




Answer from Backrack, you do use the spacer plate on the short bed but you just need to cut out more plastic,

Last edited by index1489; 02-11-2019 at 09:37 PM.
index1489 is offline
