So, I am assuming that is the harness that connects to fogs and parking sensors. Since there is neither in the Raptor, I might have to keep looking to see if there is a similar plug nearby...
Alright guys, so I decided to pull the trigger on the retrofit on a 2020 Raptor. Got all the parts listed, and as it turned, the Raptor has the bracket ready to go. (So I'll have some extra hardware for sale if I can't return).
Anyway, I got the JL3Z-15K867-B which is only about a foot long, but I cannot find where it plugs to on a Raptor. Obviously no Fogs or parking sensors, so I don't know if there is a connector near..... I know this isn't a Raptor forum, but I cannot find anything related to ACC for Raptor retrofit... lol.
I'll get to the Forscan part eventually, first I need to plug CADS!
Yeah I the Raptor has some different harnesses and connectors. You would need to connect at C1045 with a 15K867 harness. I can't help with part number.
So, I am assuming that is the harness that connects to fogs and parking sensors. Since there is neither in the Raptor, I might have to keep looking to see if there is a similar plug nearby...

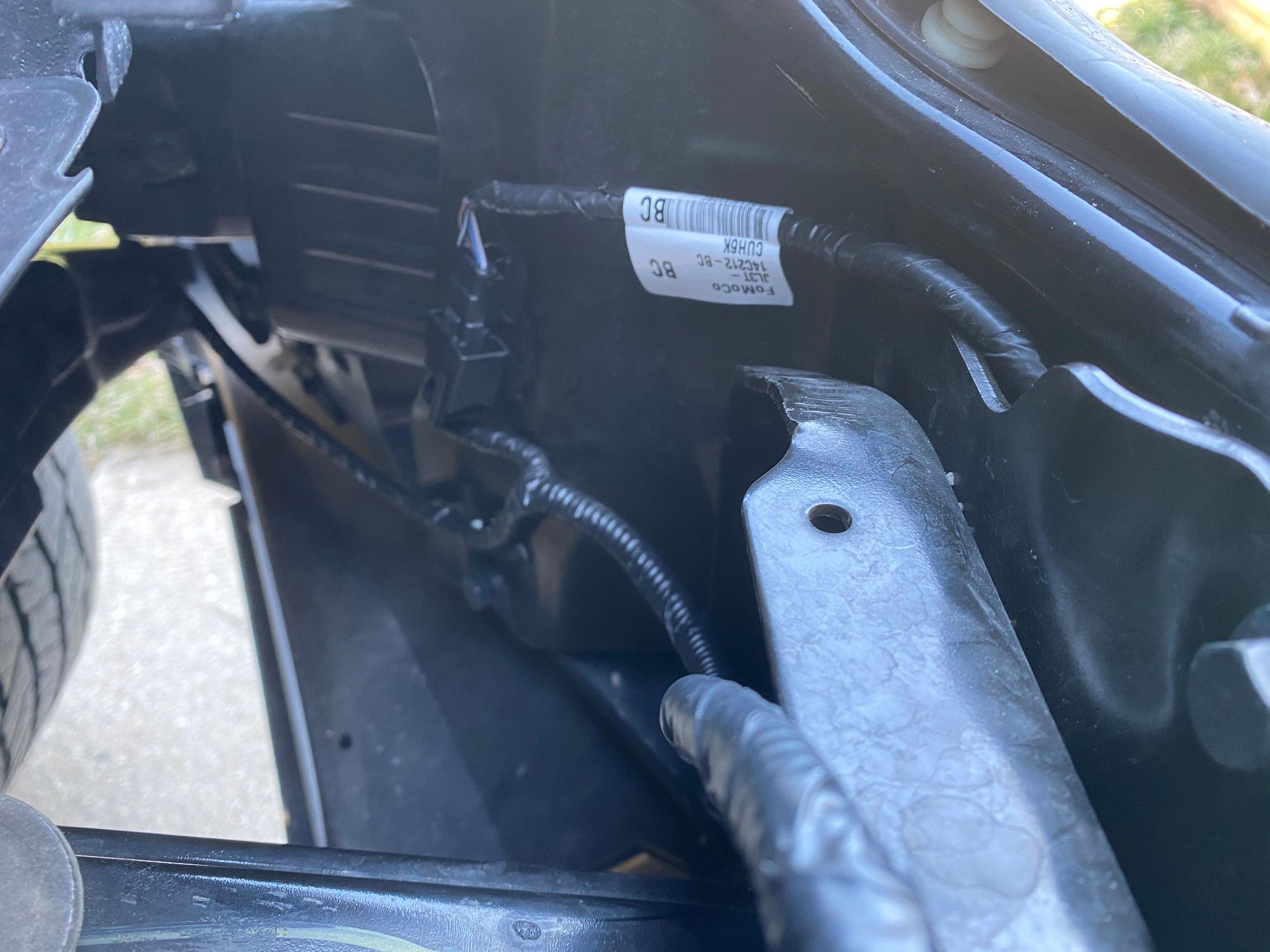

Thanks for the picture.
Are you trying to add regular ACC or ACC with stop/go?
So, I am assuming that is the harness that connects to fogs and parking sensors. Since there is neither in the Raptor, I might have to keep looking to see if there is a similar plug nearby...
Thanks for the picture.
Are you trying to add regular ACC or ACC with stop/go?
Are you trying to add regular ACC or ACC with stop/go?
2020 Raptor came equipped with LKA and AEB as standard just like the 2019 and 2020 regular F150's. My assumption is that the Stop and Go will be compatible by adding CADS as IPMA is already the one I need, just as everyone else's on this thread, assuming my ABS is compatible as well... one way to find out!
I believe my connector plugs into the bumper cable that has the shutters, FL3T-15K867-CE
Yeah, no luck with the harness that feeds off the shutters, temp sensors and stuff.
Anyone with access to the parts diagram that shows the correct harness for a Raptor with 802A where the short CADS harness plugs into?
Its going to the harness mentioned above. 15k867. You add the prefix JL3Z. So should be a variation of that with a suffix. so JL3Z-15K867- What exact suffix i dont know. I can go look and see what part number is on mine.
Just looked at mine. It was superseded by JL3Z-15k867-J. May want to look into that one.
