UHF Antennas?

Thread Tools Search this Thread
Old 02-21-2013, 07:03 PM   #1
Junior Member
JustThatGuy's Avatar
Join Date: Feb 2013
Location: Some Where In The Midwest
Posts: 19
Thanked 0 Times in 0 Posts
Default UHF Antennas?

Ok, so I have on my hands a post fire command vehicle and well there are three antennas on the roof, I am assuming that they are UHF band antennas. Now in the case of why I am here: I haven't a clue how they work, so what I would like to know is brand, make, and cable port. I have tried for a while, and frankly unless you fix them or make them, there is practically no information on them. What I am truly interested on though is can they be re-purposed into CB antennas? and if not can they be used for any civilian use? Basically any information is pretty much useful.
UHF Antennas?-antenna.jpg
Three Antennas that
UHF Antennas?-antenna-bracket.jpg
Each Attach

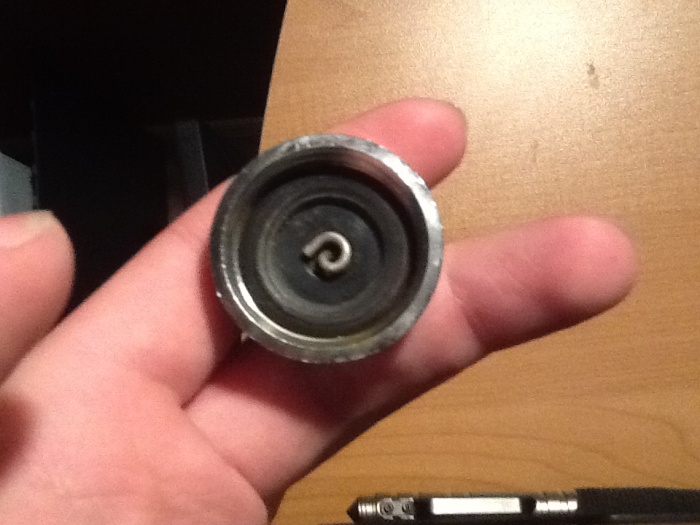

UHF Antennas?-antenna-bracket-female.jpg
Like this

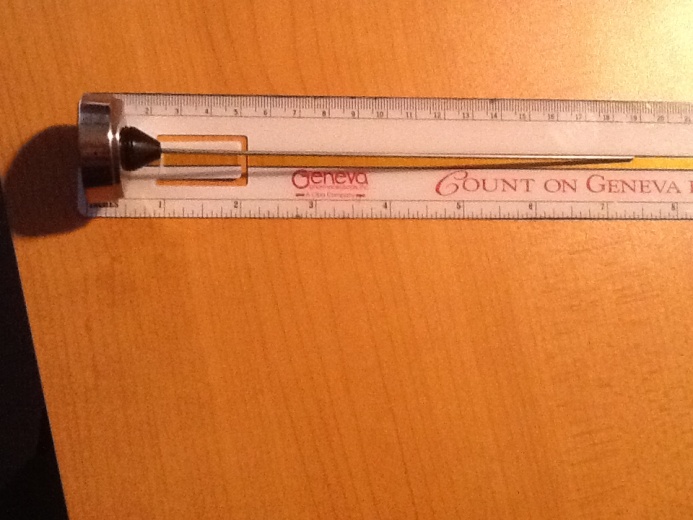

UHF Antennas?-antenna-length.jpg
And each is 7 1/4 to 7 1/2 inches long.
So again-Thanks
I'll get there, and faster than you.
JustThatGuy is offline   Reply With Quote
Join F150 Forum

Join F150Forum.com Today - It's Totally Free!

Are you a Ford F150 fan? If so we invite you to join our community and see what it has to offer. Our site is specifically designed for you and it's a great place for Ford F150 Fans to meet online.
Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Ford F150 fans. Whether your an old timer or just bought your F150 you'll find that F150Forum.com is a great community to join. Best of all it's totally free!

Join F150Forum.com Today! - Click Here JOIN FOR FREE

Old 03-30-2014, 09:26 PM   #2
Junior Member
Join Date: Dec 2013
Posts: 13
Thanks: 0
Thanked 1 Time in 1 Post

There is a CB antenna that will fit that (NMO) mount if you want to use one of them for CB.

DN70ka is offline   Reply With Quote
Old 03-31-2014, 08:13 PM   #3
Junior Member
JustThatGuy's Avatar
Join Date: Feb 2013
Location: Some Where In The Midwest
Posts: 19
Thanked 0 Times in 0 Posts

A few days too late I'm afraid. I just put a CB antennae on my bumper a week ago. Now I'm looking fo a UHF radio for the antennae. Thanks anyway.
I'll get there, and faster than you.
JustThatGuy is offline   Reply With Quote
Old 03-31-2014, 08:38 PM   #4
Salvage Yard Pro
unit505's Avatar
Join Date: Feb 2012
Location: Keithville, La
Posts: 2,541
Thanked 120 Times in 107 Posts

What kind of UHF Radio do you think your going to use? I'd use one of the antenna for a scanner. You can't use it unless it's a licensed business band that your going to use for your business. Your not even sure what band the antennas are for. You've also got to get an swr meter to check for antenna match. Your not just going to grab a uhf/vhf radio and jump on it and talk. Not trashing you, just trying to make sure you understand what your getting into.

Edit..........and it's not a uhf antenna. VHF 1/4 wave antenna with no coil are normally around 19 - 23" and are trimmed for swr match. UHF 1/4 wave are between 5.5 - 6" and trimmed to match swr. Your antenna are more than likely 700-800mhz antenna. They can be trimmed for use on uhf but you have to have the uhf capable swr meter to do so. You cannot use an cb swr meter either. Wrong band for antenna matching. Take them off and buy an nmo cap to screw on them.
1995 SWB 300 I6, M5OD, 273 gears, 235/75r15's, 21MPG, 50" Led Light Bar, 6" Off Road Lights, Full Synthetic Fluids, K&N RF1012
"Gentlemen, we can rebuild them. We have the technology. We have the capability to build the world's first unstoppable truck. The F-150 will be that truck. Better than it was before. Better, stronger, faster."

Last edited by unit505; 03-31-2014 at 09:01 PM.
unit505 is offline   Reply With Quote
Old 06-23-2014, 10:03 AM   #5
Junior Member
Join Date: Apr 2014
Location: Los Angeles
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts

A 5" spike antenna can be cut for transmit on UHF 403 to 430 MHz. yours looks to be 6.5" it may be cut to be a receive only UHF antenna.
You can do a google search for 1/4 wave UHF cut charts to find out more.

olddog45 is offline   Reply With Quote
