Default Custom E-Fan Installation

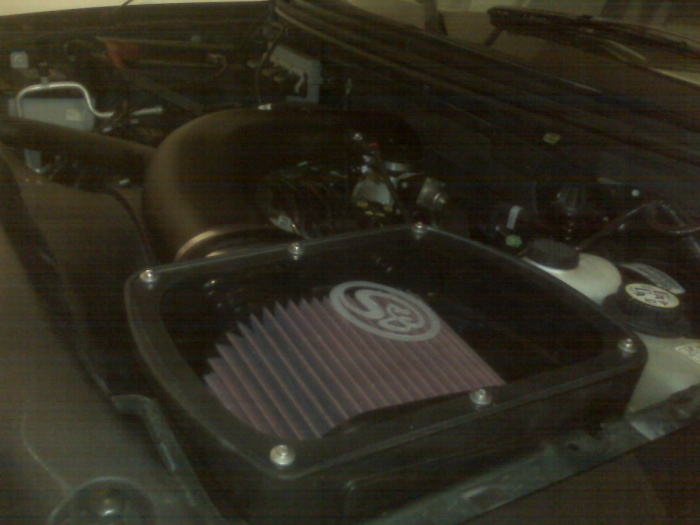

After reading several of the E-Fan write-ups on here I thought it would be a good idea to try to install them myself. I have done it differently then the ones I have seen on here before.

Custom E-Fan Installation-1.jpg

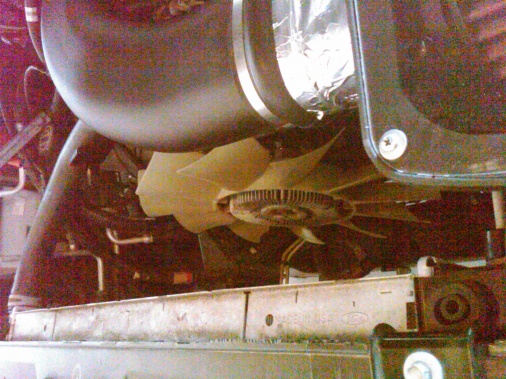

Taking the mechanical fan out was pretty much cut and dry. I went to the local Autozone and rented the removal tools.

Custom E-Fan Installation-2.jpg
Attachment 15979



The next large task was figuring out how to mount the 2- 16" fans without possibly damaging the radiator. I was surprised to find that the aluminum radiator bracket had about an 1/2 inch lip. I decided that I could use that lip to mount the brackets.

I then purchased 4- 1/8" pieces of aluminum strips. I bet the ends of the aluminum strips to the shape of the aluminum radiator housing.
Custom E-Fan Installation-img00082-20100328-1502.jpg
Custom E-Fan Installation-img00083-20100328-1502.jpg

I then pre-drilled the mounting holes for the fan bolts and straps(optional - safety). I tested the bracket before installing on the radiator. Notice that I also used 2 brackets from each fan to help limit vibration.
Click the image to open in full size.


The next step was to drill the 8 holes through the radiator bracket (becareful not to drill into the radiator!). I also recommend using blue lock-tight. You dont want your fans to work their way lose after awhile.
Click the image to open in full size.

Now we attach the Fans to the brackets using the pre-drilled holes. Notice I already have the bolts in place waiting on the Fans.
Click the image to open in full size.
Click the image to open in full size.

From here we are now able to start doing the electrical. I mounted my fan controller on the top of the windshield fluid reservoir. This appeared to be the best location inside the engine compartment free of moister and any direct heat.
Click the image to open in full size.

I placed all the wire in wire loom and soldered all connections. Soldering is far the best way to ensure the best connection.
Click the image to open in full size.


Click the image to open in full size.
Click the image to open in full size.

From here I started to route the wires into the cab for the manual switches. I wanted to install 2 switches and 1 LED light.

Switch 1 = Manual ON (bypassing the fan controller) *this connection you must install and inline fuse since it is not protected by the controller fuse*
*optional

Switch 2 = Manual OFF (bypassing the fan controller) This allows for me to turn off the fans even though the controller is sending power to the fans. This is for when you are at a drive though and the fans are screaming. *optional

LED light illuminates when the fans are engaged.


Click the image to open in full size.

And this is what it looks like in the end.
Click the image to open in full size.

These are the items I used for this system:

Derale Adjustable Fan Controller #16759 (for dual electric fans up to 25 continuous amps 150 - 240 degrees F). This setup comes with the radiator fin probe. I highly recommend getting the 3/8 NPT thread sensor (derale #16750) along with the Autom Meter Hose adapter (auto meter #2283). I will be switching to this new sensor soon. I believe it would be more accurate.

ProComp 16" Curved Blade fans (2) Part # PC-2054-s

2- 30 amp switches
1- LED Light
1- inline 30 amp fuse
4- 1/8 Aluminum strips
Several stainless steel nuts and bolts.
Attached Thumbnails
Custom E-Fan Installation-img00077-20100328-1324.jpg

Last edited by rye; 04-07-2010 at 02:50 PM.
rye is offline   Reply With Quote
Old 04-08-2010, 09:51 AM   #2
Ford Blue Oval Guy

MustangMabry's Avatar

Join Date: Jul 2009
Location: Savannah, Tenn.
Posts: 427
Mentioned: 0 Post(s)
Thanked 2 Times in 2 Posts
Feedback Score: 0 reviews
Default

Great write up.
__________________
-Cory-

2012 Ford F-150 Flame Red Screw XLT 5.0 4v 6R80 3.31 9.75 axle 5,440 pounds with me in the truck-Borla 40085 XR-1 and tint to come-
2000 Ford Mustang GT (far from stock)
MustangMabry is offline   Reply With Quote
Old 04-08-2010, 02:50 PM   #3
rye
Junior Member

Join Date: Mar 2010
Location: Maryland
Posts: 18
Mentioned: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Default

Thanks
rye is offline   Reply With Quote
Old 04-09-2010, 06:28 PM   #4
Senior Member

Shiny's Avatar

Join Date: Jul 2009
Location: Dubai, UAE
Posts: 254
Mentioned: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Default

That is nice. Just how I would do it.
Just an idea, if you use rubber or foam on the between the fan hosing and the radiator, the efficiency will be better.
Shiny is offline   Reply With Quote
Old 04-16-2010, 02:55 PM   #5
Junior Member

Join Date: Apr 2010
Location: Kingston, Ok
Posts: 8
Mentioned: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Default

how well does it work?
justjohn3179 is offline   Reply With Quote
Old 04-16-2010, 06:48 PM   #6
Senior Member
5 Year Member

mustangwarrior's Avatar

Join Date: Jul 2009
Location: NE OHIO
Posts: 1,481
Mentioned: 0 Post(s)
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
Default

so you have to manually turn on the fans every time? or how does the little computer thing work?
__________________

1996 XLT 5.0L, 31" Coopers, Flowmaster 44, Brushguard
'99 Escort ZX2 5spd

Every "Heartbeat" ends with a 'STROKE!
"When you drive a FORD, you don't need a GOODWRENCH"
mustangwarrior is offline   Reply With Quote
Old 04-18-2010, 10:03 AM   #7
Senior Member

hackersmovie's Avatar

Join Date: Nov 2009
Location: Maryland
Posts: 919
Mentioned: 0 Post(s)
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
Default

Where did you buy the 16" Fans and Derale controller? How much?
hackersmovie is offline   Reply With Quote
Old 05-11-2010, 10:45 PM   #8
Junior Member

Join Date: May 2010
Posts: 7
Mentioned: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Default

Great mod. Not sure of the functionality but would love to see anwers to the above questions.
F150Owner is offline   Reply With Quote
Old 06-21-2010, 08:25 PM   #9
Junior Member

Join Date: Jun 2010
Posts: 11
Mentioned: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Default

Whats the point of removing the stock fan and replacing with 2 electric fans? And as asked above, do these fans automatically activate or do they need a switch installed in the cab to turn them off/on?
DaJokr is offline   Reply With Quote
Old 06-21-2010, 08:34 PM   #10
Senior Member

GATORB8's Avatar

Join Date: Dec 2009
Location: Arlington Heights, IL
Posts: 4,976
Mentioned: 0 Post(s)
Thanked 118 Times in 68 Posts
Feedback Score: 0 reviews
Default

Quote:
Originally Posted by DaJokr View Post
Whats the point of removing the stock fan and replacing with 2 electric fans? And as asked above, do these fans automatically activate or do they need a switch installed in the cab to turn them off/on?
The stock fan is driven by the engine and takes power to drive (resulting in less power to the wheels and worse gas mileage).

The controller turns the fans on when the sensed temperature reaches a preset level, and off when it gets back down to a lower preset level. His switches are just for overriding the controller if he wants to.
__________________
GATORB8 - 2006 Smokestone Scab Lariat 4x4 5.4 - Viper Smartstart|AVS Ventvisors|Tint|Drop In Bedliner|PIAA Back-up Lamps|**** Tow Mirrors|ranchitout shifter cover|Wood Steering Wheel and Dash Kit|WeatherTech Floor Liners|Pioneer Premier TS-D720C|Peerless 10" XXLS|Qlogic Qcustom|Kenwood eXcelon KAC-X4R|Knukonceptz.com wiring|Escort QI45|MBRP Catback|Superchips Flashpaq|K&N Drop In|Optima Red Top|Tekonsha Brake Controller|2.5" AS Level/3" Rear Blocks|275/70R18 BF Goodrich All Terrain
