Default Extension Brackets for Running Boards install

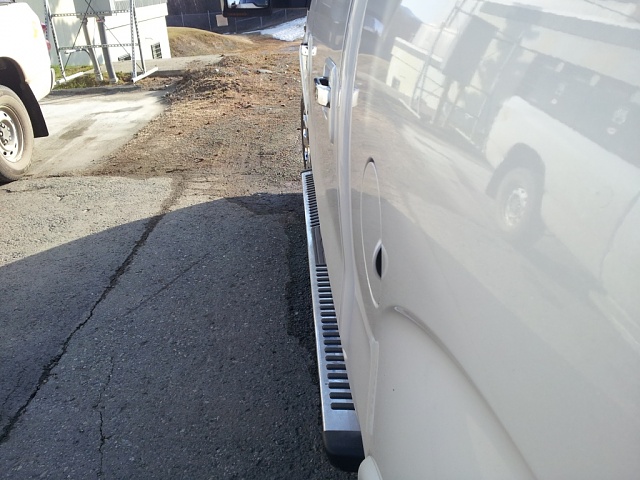

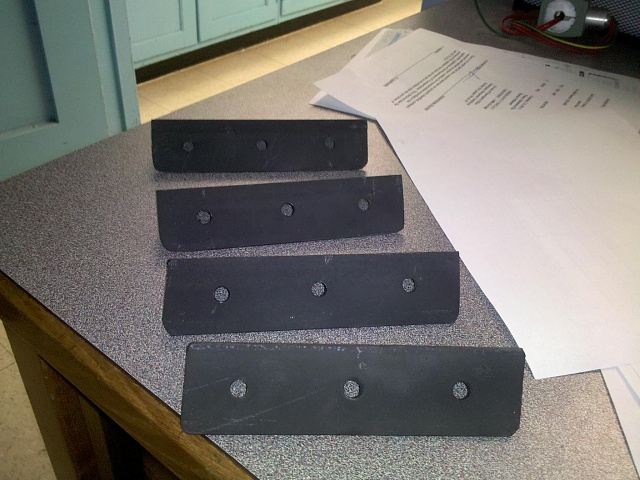

Last winter I had a heck of a time with the Running Boards on my Larait. The are in too close to the truck to allow me to get good footing on them especially with some snow and ice build up on them and work/snow boots on. So I didn't spend the money on Amp Research running boards but instead spent about $20 and moved the running board out a little. this is the before picture....and below that is the picture of the brackets that I made. I used 1/8" X 1 1/2" angle iron that I picked up at Lowes/Home Depot. The brackets are 6" long, (3) 11/32" holes spaced evenly at 1 15/16" and on centerline of angle iron.
Attached Thumbnails
Extension Brackets for Running Boards install-before.jpg   Extension Brackets for Running Boards install-exension-bracket-2.jpg   Extension Brackets for Running Boards install-brackets1.jpg
__________________
2013 F150 Platinum 3.5L Ecoboost
2011 F150 Lariat Plus 3.5L Ecoboost (traded in on 2013
2000 F250 Superduty XLT 5.4L, 5 speed manual w/granny 1st gear
2001 Expedition XLT 5.4L (Ex wife got to keep it)
1990 Bronco XL 5.0L (gone but not forgotten)

Last edited by waterboyjlw; 04-26-2012 at 06:18 PM. Reason: spelling
waterboyjlw is offline   Reply With Quote
Old 04-26-2012, 06:09 PM   #2
Alaskan by Choice

waterboyjlw's Avatar

Join Date: Jul 2011
Location: Anchorage,Alaska
Posts: 219
Mentioned: 0 Post(s)
Thanks: 12
Thanked 13 Times in 11 Posts
Feedback Score: 0 reviews
Default

It was pretty simple to remove the running boards... just a 13mm socket. here is a picture of the OEM brackets holding the running board in place. So remove the 8 nuts and lift the running board off and set it aside (where it wont get scratched). Install the bracket extensions onto the OEM brackets and use a 1/4-20 X 1" bolt and locknut to hold it in place. Then just put the running board back in place.
Attached Thumbnails
Extension Brackets for Running Boards install-oem-bracket.jpg   Extension Brackets for Running Boards install-rb-removed-2.jpg   Extension Brackets for Running Boards install-exten-installed.jpg   Extension Brackets for Running Boards install-ext-installed-side.jpg
__________________
2013 F150 Platinum 3.5L Ecoboost
2011 F150 Lariat Plus 3.5L Ecoboost (traded in on 2013
2000 F250 Superduty XLT 5.4L, 5 speed manual w/granny 1st gear
2001 Expedition XLT 5.4L (Ex wife got to keep it)
1990 Bronco XL 5.0L (gone but not forgotten)
waterboyjlw is offline   Reply With Quote
Old 04-26-2012, 06:13 PM   #3
Alaskan by Choice

waterboyjlw's Avatar

Join Date: Jul 2011
Location: Anchorage,Alaska
Posts: 219
Mentioned: 0 Post(s)
Thanks: 12
Thanked 13 Times in 11 Posts
Feedback Score: 0 reviews
Default

ANd this is the after installation picture of the running board. It is solid, supports my 300+ pounds and sticks out just far enough that i can get a full foot on it. Also a picture of underside of running board brackets.
Attached Thumbnails
Extension Brackets for Running Boards install-after-install-side.jpg   Extension Brackets for Running Boards install-after-brackets-side.jpg
__________________
2013 F150 Platinum 3.5L Ecoboost
2011 F150 Lariat Plus 3.5L Ecoboost (traded in on 2013
2000 F250 Superduty XLT 5.4L, 5 speed manual w/granny 1st gear
2001 Expedition XLT 5.4L (Ex wife got to keep it)
1990 Bronco XL 5.0L (gone but not forgotten)
waterboyjlw is offline   Reply With Quote
Old 04-26-2012, 07:17 PM   #4
On my 3rd F-150.

1fifty's Avatar

Join Date: Jan 2012
Location: CT
Posts: 474
Mentioned: 0 Post(s)
Thanks: 12
Thanked 34 Times in 27 Posts
Feedback Score: 0 reviews
Default

Man, I really like good simple solutions and you really have one there. Well done and glad it works out for you. Might not work for everyone, but it is a cool fix.
__________________
2012 FX4 SuperCrew, Ingot Silver, Lux pkg, 5.0L with 60k miles
1fifty is online now   Reply With Quote
Old 04-26-2012, 07:34 PM   #5
Senior Member

kmaximus's Avatar

Join Date: Aug 2011
Location: Columbia, SC
Posts: 429
Mentioned: 2 Post(s)
Thanks: 43
Thanked 76 Times in 57 Posts
Feedback Score: 0 reviews
Default

Thanks so much for posting this write up, I've cut 2 of mine at this point and will be finishing up the other 2 tomorrow.

The 2012 FX running boards have different mounting holes on the bottom so sadly I can't follow your great example to the letter but it will be close. I'll post pics once I have the last one cut
kmaximus is offline   Reply With Quote
Old 04-26-2012, 07:40 PM   #6
Back from the dark side
5 Year Member

Join Date: Mar 2009
Location: Peoples Republik of Pennsylvakia
Posts: 541
Mentioned: 0 Post(s)
Thanks: 5
Thanked 10 Times in 7 Posts
Feedback Score: 0 reviews
Default

Nice mod, and cheap. I may have to do this one. Thanks for the pics and writeup.
hemigod is offline   Reply With Quote
Old 04-26-2012, 07:50 PM   #7
Member

goldstonj's Avatar

Join Date: Dec 2011
Posts: 37
Mentioned: 0 Post(s)
Thanks: 0
Thanked 2 Times in 2 Posts
Feedback Score: 0 reviews
Default

Quote:
Originally Posted by waterboyjlw
It was pretty simple to remove the running boards... just a 13mm socket. here is a picture of the OEM brackets holding the running board in place. So remove the 8 nuts and lift the running board off and set it aside (where it wont get scratched). Install the bracket extensions onto the OEM brackets and use a 1/4-20 X 1" bolt and locknut to hold it in place. Then just put the running board back in place.
You should build more and sell them as kits on EBay. I would probably buy one since I don't have access to the right tools to make them myself.
goldstonj is offline   Reply With Quote
The Following User Says Thank You to goldstonj For This Useful Post:
r0dr0c (06-19-2014)
Old 04-26-2012, 07:54 PM   #8
Girthy Member

sllydderrr's Avatar

Join Date: Nov 2011
Location: De Winton, AB, Canada
Posts: 1,811
Mentioned: 10 Post(s)
Thanks: 73
Thanked 91 Times in 81 Posts
Feedback Score: 0 reviews
Default

I'm on this like stink on a monkey!
Thanks for the post.
