Default Black Chrome Emblems

Finally had a bit of free time today to paint my F-150 emblems... something I've been putting off for a few months. For all the help and great pictures I've gotten from you guys, I thought I'd throw a few pictures up here for anyone who would be curious.

Used the dupli-color shadow instead of a flat black with the idea that if I decided I didn't like them still shiny it would be much easier to go flat then the other way around.

Just let the truck bake in the sun for a bit and actually used dental floss to cut through enough of the emblem that I could gentle pry them off with my fingers.

Overall I definitely wasn't as clean on a few spots as I would have liked to be -- I didn't really notice when I was painting them outside in the sun, but now it's a little more obvious. Probably one of those things that no one will notice but me, but I'm sure you all know how that goes!

Can take more pictures if anyone wants them.

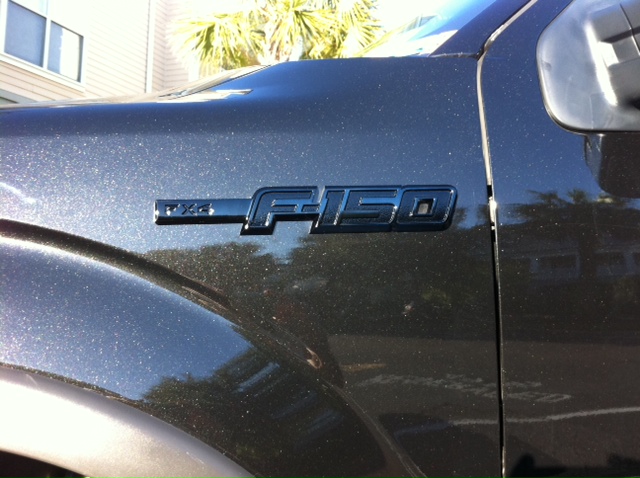

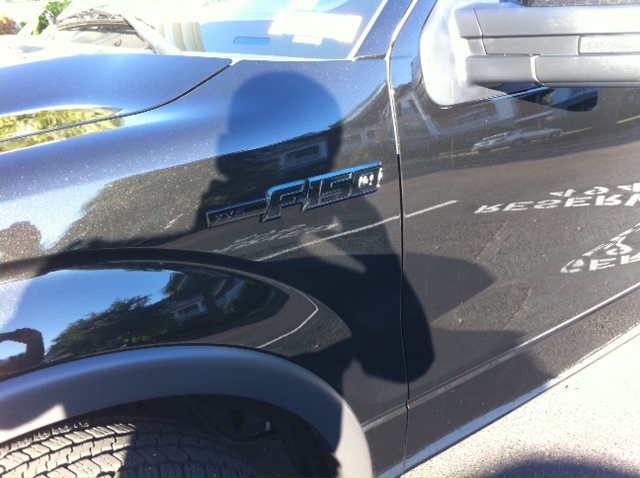

Attached Thumbnails
Black Chrome Emblems-photo.jpg   Black Chrome Emblems-photo2.jpg   Black Chrome Emblems-photo3.jpg
__________________
2011 FX4: 5.0, Loaded, 3.73 gears, 5100s Front and Rear, 295/70/18 Trail Grapplers, 18x9 Fuel Octanes, 50 Series SISO Flowmaster, 35% Tint Front Windows
SoCalFX4 is offline   Reply With Quote
Old 10-16-2011, 05:46 PM   #2
Senior Member

Belushi's Avatar

Join Date: Aug 2011
Location: Tecumseh, Oklahoma
Posts: 1,239
Mentioned: 1 Post(s)
Thanks: 20
Thanked 60 Times in 48 Posts
Feedback Score: 0 reviews
Default

Nice looking badges. I'm looking to do this. Did u brush, pour, or spray the paint on? And is there a protective coat on those? Did u have to score the surface to get paint to adhere? I know there's plenty of threads but I like hearing each individuals input on this. Thanks. Nice looking ride!!
Belushi is online now   Reply With Quote
Old 10-16-2011, 07:05 PM   #3
Senior Member

SoCalFX4's Avatar

Join Date: Jan 2011
Location: San Diego, CA
Posts: 112
Mentioned: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Default

Thanks! The dupli-color shadow I used was a spray and had two cans. The first was the "shadow" to darken the chrome and the second was a clear coat. Each coat of the shadow will make it darker - I used 3 coats 20 minutes apart so you could have it be much lighter (maybe darker?) if you desired.

With 20 minutes between coats, an hour between the shadow and the clear coat, 3 coats of clear coat, and a recommended 4 hours afterwards before re-applying to the truck, I'd advise starting early in the day... mine wound up a little rushed.

I didn't sand or use steel wool to rough it up, just cleaned. We'll see how it holds up.

Regardless of how they last -didn't damage the truck which is the important part. So far I definitely like the look.
__________________
2011 FX4: 5.0, Loaded, 3.73 gears, 5100s Front and Rear, 295/70/18 Trail Grapplers, 18x9 Fuel Octanes, 50 Series SISO Flowmaster, 35% Tint Front Windows
SoCalFX4 is offline   Reply With Quote
Old 10-16-2011, 07:13 PM   #4
Senior Member

Nickf150fx4's Avatar

Join Date: Oct 2011
Location: medford
Posts: 361
Mentioned: 0 Post(s)
Thanks: 4
Thanked 14 Times in 13 Posts
Feedback Score: 0 reviews
Default

Awesome job man, Best job i've seen so far of all the painted emblem jobs! I'm gonna have to steal your idea as soon as my 2012 FX4 comes in
Nickf150fx4 is offline   Reply With Quote
Old 10-16-2011, 09:15 PM   #5
Haulin Bass!

Riccochet's Avatar

Join Date: Jun 2011
Location: Concord, NC
Posts: 700
Mentioned: 0 Post(s)
Thanks: 11
Thanked 40 Times in 28 Posts
Feedback Score: 0 reviews
Default

What did you use to reattached the emblems?
Riccochet is offline   Reply With Quote
Old 10-17-2011, 03:33 PM   #6
Senior Member

SoCalFX4's Avatar

Join Date: Jan 2011
Location: San Diego, CA
Posts: 112
Mentioned: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Default

Actually managed to get the string right in between the emblem and the adhesive tape (vice the adhesive tape and the paint), then gentled pryed the emblem off with my fingers, managing to get the emblems off cleanly with the tape still intact on the side of the truck. Truck was in the hot sun while the emblems were drying so the tape stayed super sticky and seem to be on there just as tight now that I reapplied as they were before I started... we'll see if it lasts.

I had some 3M double sided emblem tape ready to go... it's super thin and real sticky - safe to use on paint. Under 10 bucks at the auto parts store. Appears to be the exact same thing Ford uses... with the exception theirs is cut all nicely to shape.

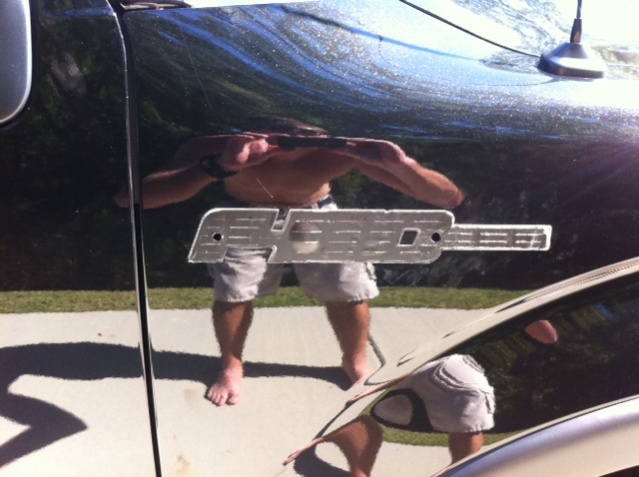

Picture of what the stock emblem tape looks like (don't mind the shirtless guy in the reflection, it was a nice day).
Attached Thumbnails
Black Chrome Emblems-photo6.jpg
__________________
2011 FX4: 5.0, Loaded, 3.73 gears, 5100s Front and Rear, 295/70/18 Trail Grapplers, 18x9 Fuel Octanes, 50 Series SISO Flowmaster, 35% Tint Front Windows
SoCalFX4 is offline   Reply With Quote
Old 10-17-2011, 03:37 PM   #7
Palmetto Pride

Moody Blue's Avatar

Join Date: Nov 2009
Location: South Carolina
Posts: 2,977
Mentioned: 43 Post(s)
Thanks: 114
Thanked 169 Times in 134 Posts
Feedback Score: 0 reviews
Default

Looks good
__________________
Moody Blue is offline   Reply With Quote
Old 10-17-2011, 03:56 PM   #8
Proudly Canadian
5 Year Member

clpeller's Avatar

Join Date: Mar 2009
Location: Grande Prairie, Alberta
Posts: 3,016
Mentioned: 11 Post(s)
Thanks: 4
Thanked 114 Times in 105 Posts
Feedback Score: 0 reviews
Default

Looks great man. i was wondering what to use when I paint my emblems to keep them shiny, and now I know
__________________
16,000W Stereo Build: CLICK ME
2011 Red Candy Metallic FX4
Rear blocks removed, steps removed, stickers removed, 22" KMC Slides, PTM Leer 550 Tonneau, 40" Light Bar Behind the Grille, Stubby Antenna, (4) 15" Half Wall in Progress.
clpeller is offline   Reply With Quote
Old 10-17-2011, 04:50 PM   #9
A Ford Parts Guy

PileDriver73's Avatar

Join Date: Oct 2011
Location: Minnesota
Posts: 74
Mentioned: 0 Post(s)
Thanks: 1
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
Default

Very sharp.
__________________
2011 F150 XLT 4X4 5.0L SCAB
PileDriver73 is offline   Reply With Quote
Old 10-18-2011, 12:28 AM   #10
Senior Member

ABN Panzer's Avatar

Join Date: May 2010
Location: East Kansas
Posts: 1,179
Mentioned: 1 Post(s)
Thanks: 13
Thanked 33 Times in 21 Posts
Feedback Score: 0 reviews
Default

I picked up the duplicolor Shadow paint just before I deployed. Just never got the chance to do the project. Glad I saw yours as I will end up doing this when I return.

Pics look great!
