Lightbulb Backup Light Upgrade

One of the things that I noticed about my truck is I can't see very well behind me when backing up at night. There's really not much light coming from the factory backup lights. So I figured I'd install an some relatively inexpensive LED aftermarket CREE lights. They have 6 LED's in each module. At 18w they only draw about .95A each. They were just under $35 from Amazon.

Here are the units I purchased.

Click the image to open in full size.

I wanted the lights to come on when my backup lights came on. I decided to install a simple 12v relay for providing power to the lights and control the relay by tapping into the supply line going to the backup light. There's an intermediate connector above the rear tire that goes to the tail light assembly. It's the one closer to the rear of the vehicle and should not be mistaken for the one that connects to the trailer hitch. The release for the connector is on top of the connector and will disconnect fairly easily for access.

Click the image to open in full size.

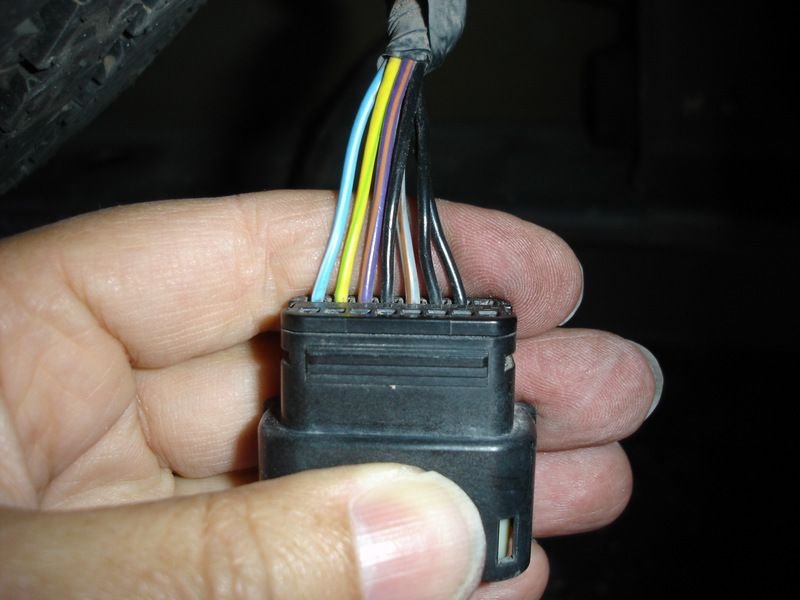

In this photo you can see the wire colors. The backup light is the Light Blue/White wire on the left side.
  • Light Blue/White - Backup
  • Yellow/Green - Parking Light
  • Purple/Brown - Right Turn
  • Black - Ground
  • Gray/Brown - Left Turn
  • Black - Ground
  • Black - Ground

Click the image to open in full size.

I ran a wire from the fuse block under the hood powered by a 3A fuse. There was an empty position on the left side of the fuse block where I was able to insert that MiniFuse adapter. That wire goes all the way back to near the above connector and attaches to the pin #30. The output of the relay comes from pin #87. I attached the Hot/Red wires from the LED lights to that. The ground wires from the LED lights I attached to the same location that the Trailer Hitch intermediate connector attaches to on the truck frame. It's located just out of visual range of the photo above and right above the spare tire.


Click the image to open in full size.

Click the image to open in full size.



As for controlling the relay, Pin #85 gets attached with a splice tap connector to the Light Blue/White wire you see in the above photo. Pin #86 which is ground, I attached with a splice tap connector to the last Black wire on that connector above as well. (nothing gets attached to pin #87a)

I drilled (2) 5/16" holes into the Trailer Hitch horizontal tube to mount the lights. I've angled them down and slightly outward so the light is shining where I can see when looking in the side view mirrors. Here's how they turned out.

Click the image to open in full size.

Feel free to ask any questions or make comments.
